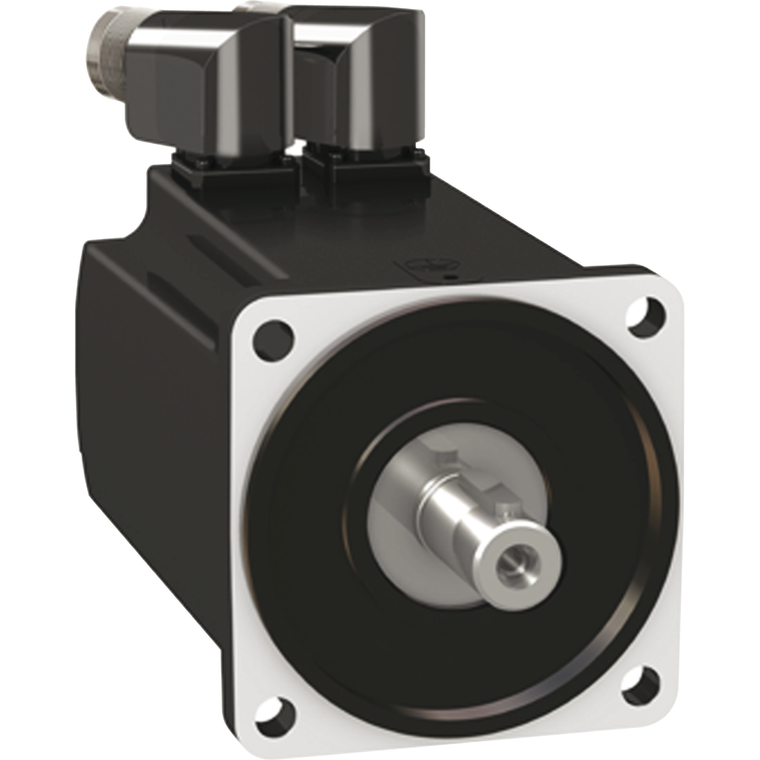

Schneider Electric BMH1002P26F2A Motor 100Mm Iec 6,2Nm Ip65/67 2060W No
SKU:
BMH1002P26F2A
UPC:
3606485196169
MPN:
Condition:
New
Centring Collar Diameter:
95 mm
Number Of Mounting Holes:
4
Continuous Stall Torque:
6.2 N.m LXM32.D18N4 6 A, 400 V, three phase || 6.2 N.m LXM32.D18N4 6 A, 480 V, three phase
Electrical Connection:
rotatable right-angled connectors
Peak Stall Torque:
18.4 N.m LXM32.D18N4 6 A, 400 V, three phase || 18.4 N.m LXM32.D18N4 6 A, 480 V, three phase
Speed Feedback Resolution:
32768 points/turn
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Continuous Power:
2.36 W
Rohs Exemption Information:
Yes
Maximum Axial Force Fa:
0.2 x Fr
Stator Electrical Time Constant:
5 ms 20 °C
Second Shaft:
without second shaft end
Number Of Motor Stacks:
2
Pvc Free:
Yes
Continuous Stall Current:
5.04 A
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Shaft Diameter:
19 mm
Maximum Permanent Current:
18.23 A
Shaft End:
smooth shaft
Back Emf Constant:
77 V/krpm 120 °C
Environmental Disclosure:
ENVPEP111002EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury Free:
Yes
Device Short Name:
BMH
Warranty:
18 months
Stator Inductance:
7.5 mH 20 °C
Rotor Inertia:
6.77 kg.cm²
Brake Pull-In Power:
12 W
Mounting Support:
international standard flange
Product Or Component Type:
servo motor
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circle Diameter Of The Mounting Holes:
115 mm
Feedback Type:
single turn SinCos Hiperface
Shaft Length:
40 mm
Stator Resistance:
1.51 Ohm 20 °C
Nominal Torque:
3.9 N.m LXM32.D18N4 6 A, 400 V, three phase || 3.9 N.m LXM32.D18N4 6 A, 480 V, three phase
Mounting Holes Diameter:
9 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity Profile:
N/A
Range Compatibility:
Lexium 32
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Phase:
three phase
Holding Brake:
with
Maximum Mechanical Speed:
6000 rpm
Motor Flange Size:
100 mm
Net Weight:
6.4 kg
Maximum Radial Force Fr:
990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm || 580 N 5000 rpm
Nominal Output Power:
1600 W LXM32.D18N4 6 A, 400 V, three phase || 1600 W LXM32.D18N4 6 A, 480 V, three phase
[Us] Rated Supply Voltage:
480 V
Torque Constant:
1.2 N.m/A 120 °C
Centring Collar Depth:
3.5 mm
Holding Torque:
5.5 N.m holding brake
Length:
202.3 mm
Product Compatibility:
LXM32.D18N4 400...480 V three phase
Type Of Cooling:
natural convection
Maximum Current Irms:
18 A LXM32.D18N4
Number Of Motor Poles:
10
Nominal Speed:
4000 rpm LXM32.D18N4 6 A, 400 V, three phase || 4000 rpm LXM32.D18N4 6 A, 480 V, three phase
