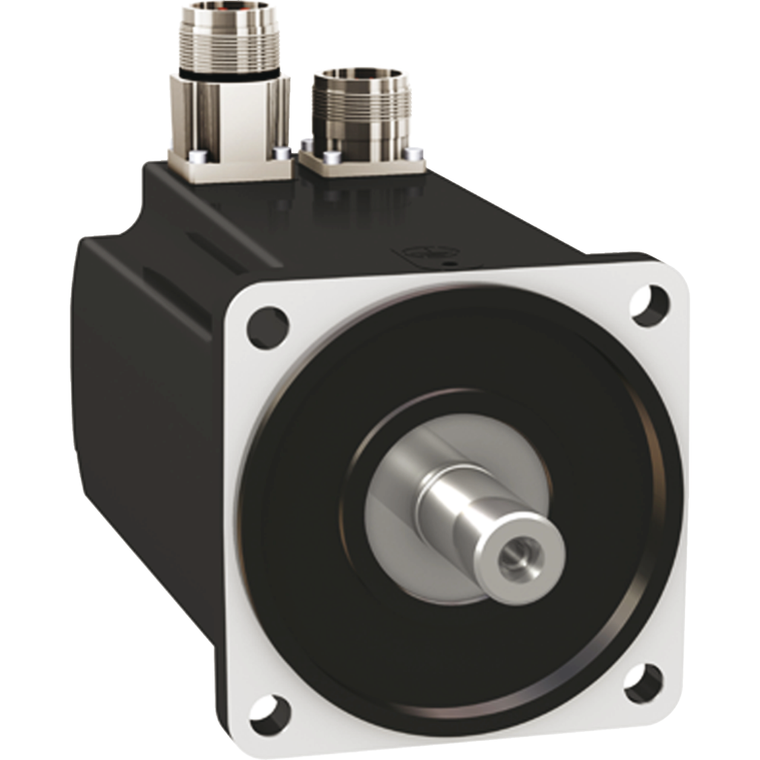

Schneider Electric BMH1002T17F1A Motor 100Mm Iec 6Nm Ip54 1910W Key Enc

SKU:

BMH1002T17F1A

UPC:

3606485197654

MPN:

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

servo motor

Feedback Type:

multiturn SinCos Hiperface

Continuous Power:

2.39 W

Product Compatibility:

LXM32.D30M2 115 V single phase || LXM32.D30M2 230 V single phase

Range Compatibility:

Lexium 32

Circle Diameter Of The Mounting Holes:

115 mm

Holding Torque:

5.5 N.m holding brake

Centring Collar Diameter:

95 mm

Shaft End:

keyed

Shaft Diameter:

19 mm

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP54 standard

Maximum Mechanical Speed:

6000 rpm

Second Shaft:

without second shaft end

Nominal Torque:

3.5 N.m LXM32.D30M2 10 A, 115 V, single phase || 4.6 N.m LXM32.D30M2 10 A, 230 V, single phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Warranty:

18 months

Maximum Current Irms:

15 A LXM32.D30M2 115 V || 30 A LXM32.D30M2 230 V

Pvc Free:

Yes

Continuous Stall Current:

8.65 A

Stator Resistance:

0.54 Ohm 20 °C

Mounting Holes Diameter:

9 mm

Shaft Length:

40 mm

Electrical Connection:

straight connectors

Mounting Support:

international standard flange

Stator Electrical Time Constant:

5 ms 20 °C

Mercury Free:

Yes

Holding Brake:

with

Rohs Exemption Information:

Yes

Maximum Axial Force Fa:

0.2 x Fr

China Rohs Regulation:

X

Maximum Radial Force Fr:

990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm || 580 N 5000 rpm

Centring Collar Depth:

3.5 mm

Circularity Profile:

N/A

Number Of Motor Poles:

10

Continuous Stall Torque:

6 N.m LXM32.D30M2 10 A, 115 V, single phase || 6 N.m LXM32.D30M2 10 A, 230 V, single phase

Brake Pull-In Power:

12 W

Stator Inductance:

2.7 mH 20 °C

Motor Flange Size:

100 mm

[Us] Rated Supply Voltage:

240 V

Number Of Mounting Holes:

4

Peak Stall Torque:

10.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 18.4 N.m LXM32.D30M2 10 A, 230 V, single phase

Type Of Cooling:

natural convection

Speed Feedback Resolution:

32768 points/turn x 4096 turns

Key Width:

30 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Motor Stacks:

2

Back Emf Constant:

46.2 V/krpm 120 °C

Rotor Inertia:

6.77 kg.cm²

Length:

202.3 mm

Torque Constant:

0.72 N.m/A 120 °C

Net Weight:

6.4 kg

Environmental Disclosure:

ENVPEP111002EN

Phase:

three phase

Nominal Output Power:

750 W LXM32.D30M2 10 A, 115 V, single phase || 1450 W LXM32.D30M2 10 A, 230 V, single phase

Maximum Permanent Current:

30.24 A

Device Short Name:

BMH

Nominal Speed:

2000 rpm LXM32.D30M2 10 A, 115 V, single phase || 3000 rpm LXM32.D30M2 10 A, 230 V, single phase

Datasheet:

View
