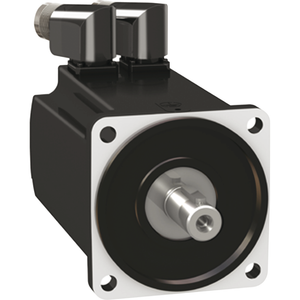

Schneider Electric BMH1003P06F1A Motor 100Mm Iec 8,4Nm Ip54 2730W No Key

SKU:

BMH1003P06F1A

UPC:

3606485196541

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Holes Diameter:

9 mm

Maximum Current Irms:

29.1 A LXM32.D30N4

Device Short Name:

BMH

Product Or Component Type:

servo motor

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Back Emf Constant:

63.5 V/krpm 120 °C

Centring Collar Depth:

3.5 mm

Nominal Output Power:

2700 W LXM32.D30N4 10 A, 400 V, three phase || 2700 W LXM32.D30N4 10 A, 480 V, three phase

Shaft Diameter:

19 mm

Holding Brake:

with

Maximum Radial Force Fr:

1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm || 610 N 5000 rpm

Number Of Mounting Holes:

4

Holding Torque:

9 N.m holding brake

Range Compatibility:

Lexium 32

Maximum Axial Force Fa:

0.2 x Fr

Maximum Mechanical Speed:

6000 rpm

Rohs Exemption Information:

Yes

Rotor Inertia:

10.3 kg.cm²

Length:

234.3 mm

Type Of Cooling:

natural convection

Shaft Length:

40 mm

Brake Pull-In Power:

18 W

Shaft End:

smooth shaft

Sustainable Offer Status:

Green Premium product

Maximum Permanent Current:

29.1 A

Motor Flange Size:

100 mm

Nominal Speed:

4000 rpm LXM32.D30N4 10 A, 400 V, three phase || 4000 rpm LXM32.D30N4 10 A, 480 V, three phase

Mounting Support:

international standard flange

Continuous Stall Current:

7.69 A

Circularity Profile:

N/A

Feedback Type:

single turn SinCos Hiperface

Speed Feedback Resolution:

32768 points/turn

Phase:

three phase

Continuous Power:

3.3 W

Nominal Torque:

6.2 N.m LXM32.D30N4 10 A, 400 V, three phase || 6.2 N.m LXM32.D30N4 10 A, 480 V, three phase

Mercury Free:

Yes

Stator Resistance:

0.63 Ohm 20 °C

China Rohs Regulation:

X

Stator Inductance:

4 mH 20 °C

Number Of Motor Poles:

10

Number Of Motor Stacks:

3

Net Weight:

8.15 kg

Circle Diameter Of The Mounting Holes:

115 mm

Continuous Stall Torque:

8.4 N.m LXM32.D30N4 10 A, 400 V, three phase || 8.4 N.m LXM32.D30N4 10 A, 480 V, three phase

Product Compatibility:

LXM32.D30N4 400...480 V three phase

Stator Electrical Time Constant:

6.3 ms 20 °C

Torque Constant:

1 N.m/A 120 °C

Ip Degree Of Protection:

IP54 standard

Warranty:

18 months

Electrical Connection:

straight connectors

Peak Stall Torque:

25.1 N.m LXM32.D30N4 10 A, 400 V, three phase || 25.1 N.m LXM32.D30N4 10 A, 480 V, three phase

Centring Collar Diameter:

95 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP111002EN

Second Shaft:

without second shaft end

Pvc Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Us] Rated Supply Voltage:

480 V
