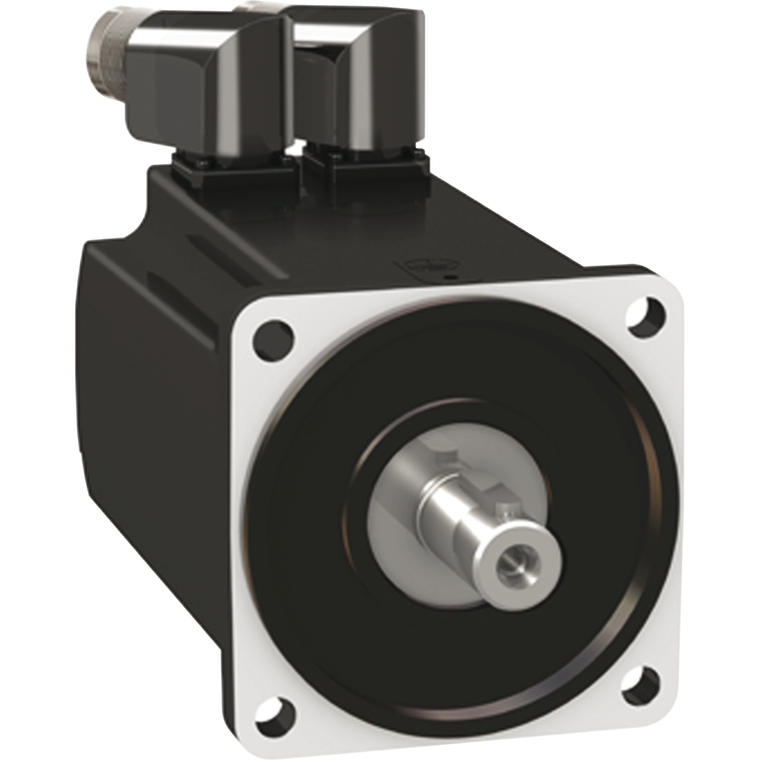

Schneider Electric BMH1003P22F2A Motor 100Mm Iec 8,4Nm Ip65/67 2730W No

SKU:

BMH1003P22F2A

UPC:

3606485196480

MPN:

Condition:

New

Maximum Mechanical Speed:

6000 rpm

Rohs Exemption Information:

Yes

Shaft Diameter:

19 mm

Electrical Connection:

rotatable right-angled connectors

Nominal Output Power:

2700 W LXM32.D30N4 10 A, 400 V, three phase || 2700 W LXM32.D30N4 10 A, 480 V, three phase

Product Compatibility:

LXM32.D30N4 400...480 V three phase

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

8.15 kg

Length:

234.3 mm

Device Short Name:

BMH

Mounting Holes Diameter:

9 mm

Number Of Mounting Holes:

4

Rotor Inertia:

10.3 kg.cm²

Stator Resistance:

0.63 Ohm 20 °C

Number Of Motor Stacks:

3

Shaft Length:

40 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Phase:

three phase

Maximum Current Irms:

29.1 A LXM32.D30N4

Type Of Cooling:

natural convection

Nominal Torque:

6.2 N.m LXM32.D30N4 10 A, 400 V, three phase || 6.2 N.m LXM32.D30N4 10 A, 480 V, three phase

Stator Inductance:

4 mH 20 °C

China Rohs Regulation:

X

Warranty:

18 months

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Maximum Permanent Current:

29.1 A

Nominal Speed:

4000 rpm LXM32.D30N4 10 A, 400 V, three phase || 4000 rpm LXM32.D30N4 10 A, 480 V, three phase

Continuous Power:

3.3 W

Feedback Type:

multiturn SinCos Hiperface

Second Shaft:

without second shaft end

Centring Collar Depth:

3.5 mm

Product Or Component Type:

servo motor

Continuous Stall Current:

7.69 A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circle Diameter Of The Mounting Holes:

115 mm

Maximum Axial Force Fa:

0.2 x Fr

Brake Pull-In Power:

18 W

Motor Flange Size:

100 mm

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product

Stator Electrical Time Constant:

6.3 ms 20 °C

Continuous Stall Torque:

8.4 N.m LXM32.D30N4 10 A, 400 V, three phase || 8.4 N.m LXM32.D30N4 10 A, 480 V, three phase

Shaft End:

smooth shaft

Range Compatibility:

Lexium 32

Maximum Radial Force Fr:

1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm || 610 N 5000 rpm

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Back Emf Constant:

63.5 V/krpm 120 °C

Environmental Disclosure:

ENVPEP111002EN

[Us] Rated Supply Voltage:

480 V

Torque Constant:

1 N.m/A 120 °C

Holding Brake:

with

Peak Stall Torque:

25.1 N.m LXM32.D30N4 10 A, 400 V, three phase || 25.1 N.m LXM32.D30N4 10 A, 480 V, three phase

Circularity Profile:

N/A

Pvc Free:

Yes

Mounting Support:

international standard flange

Centring Collar Diameter:

95 mm

Holding Torque:

9 N.m holding brake

Number Of Motor Poles:

10

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
