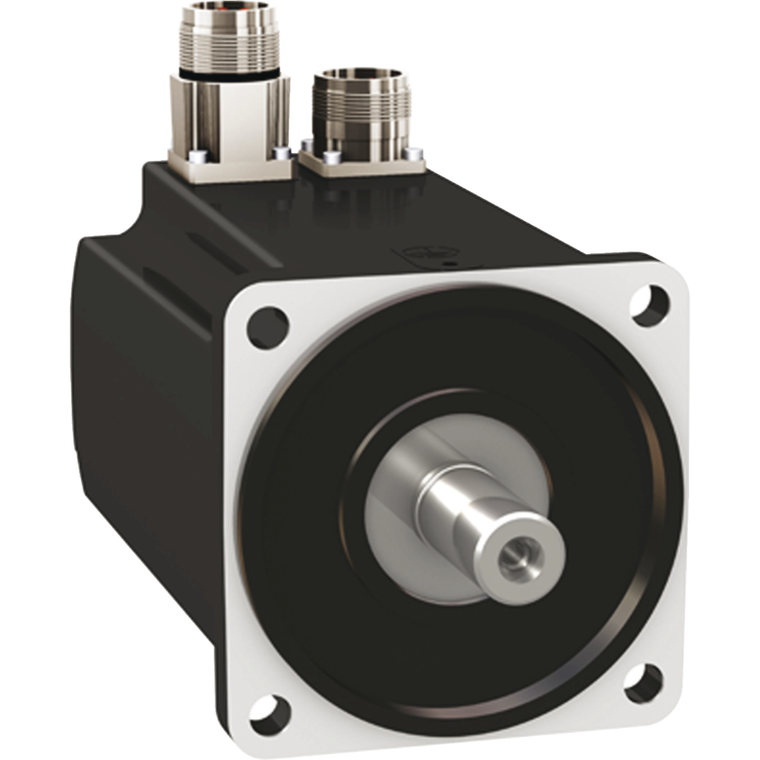

Schneider Electric BMH1003T17F1A Motor 100Mm Iec 8,4Nm Ip54 2150W Key

SKU:

BMH1003T17F1A

UPC:

3.60649E+12

MPN:

Condition:

New

Warranty:

18 months

Stator Resistance:

0.47 Ohm 20 °C

Circularity Profile:

N/A

Shaft Diameter:

19 mm

Second Shaft:

without second shaft end

Mounting Holes Diameter:

9 mm

Mercury Free:

Yes

Ip Degree Of Protection:

IP54 standard

Number Of Motor Poles:

10

Pvc Free:

Yes

Number Of Mounting Holes:

4

Centring Collar Diameter:

95 mm

Continuous Stall Current:

0.416666666666667

Device Short Name:

BMH

Torque Constant:

0.851 N.m/A 120 °C

Mounting Support:

international standard flange

Motor Flange Size:

100 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Radial Force Fr:

1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm || 610 N 5000 rpm

Maximum Permanent Current:

33.85 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP111002EN

Sustainable Offer Status:

Green Premium product

Brake Pull-In Power:

18 W

Continuous Stall Torque:

8.2 N.m LXM32.D30M2 10 A, 230 V, single phase

Product Compatibility:

LXM32.D30M2 230 V single phase

Range Compatibility:

Lexium 32

Holding Brake:

with

Nominal Torque:

5.6 N.m LXM32.D30M2 10 A, 230 V, single phase

Holding Torque:

9 N.m holding brake

Stator Electrical Time Constant:

6.4 ms 20 °C

Continuous Power:

2.62 W

Maximum Mechanical Speed:

6000 rpm

China Rohs Regulation:

X

Feedback Type:

multiturn SinCos Hiperface

Shaft Length:

40 mm

Type Of Cooling:

natural convection

Centring Collar Depth:

3.5 mm

Stator Inductance:

3 mH 20 °C

Net Weight:

8.15 kg

Key Width:

30 mm

Nominal Output Power:

1450 W LXM32.D30M2 10 A, 230 V, single phase

Maximum Axial Force Fa:

0.2 x Fr

[Us] Rated Supply Voltage:

240 V

Shaft End:

keyed

Length:

234.3 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Current Irms:

30 A LXM32.D30M2

Rotor Inertia:

10.3 kg.cm²

Nominal Speed:

2500 rpm LXM32.D30M2 10 A, 230 V, single phase

Circle Diameter Of The Mounting Holes:

115 mm

Product Or Component Type:

servo motor

Electrical Connection:

straight connectors

Rohs Exemption Information:

Yes

Phase:

three phase

Back Emf Constant:

54.8 V/krpm 120 °C

Number Of Motor Stacks:

3

Peak Stall Torque:

22.8 N.m LXM32.D30M2 10 A, 230 V, single phase

Speed Feedback Resolution:

32768 points/turn x 4096 turns
