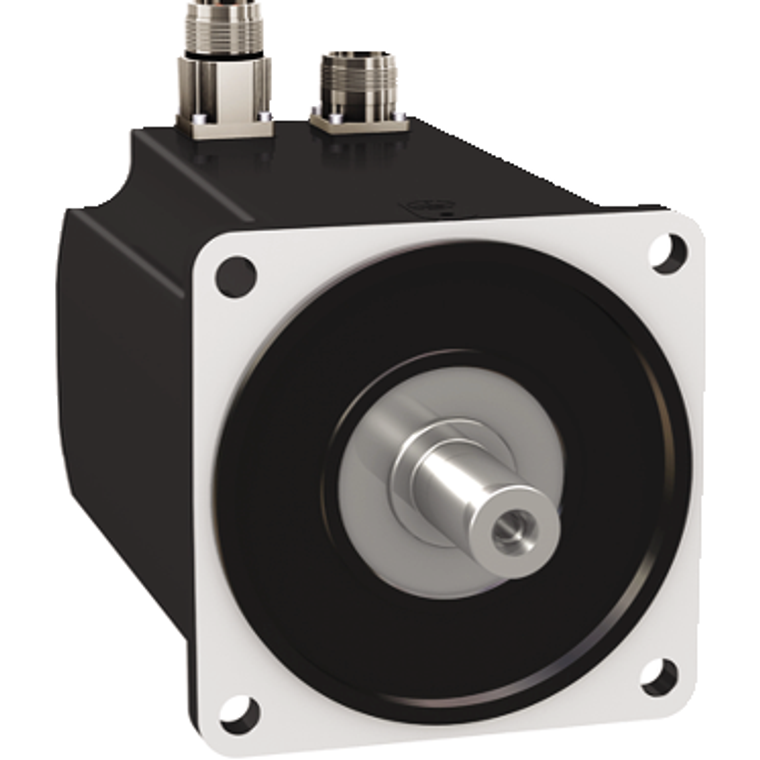

Schneider Electric BMH1401P17F1A Motor 140Mm Iec 10,3Nm Ip54 2640W Key
SKU:
BMH1401P17F1A
UPC:
3606485198606
MPN:
Condition:
New
Centring Collar Depth:
3.5 mm
Back Emf Constant:
77.4 V/krpm 120 °C
Circularity Profile:
N/A
Number Of Mounting Holes:
4
Device Short Name:
BMH
Number Of Motor Poles:
10
Peak Stall Torque:
30.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 30.8 N.m LXM32.D30N4 10 A, 400 V, three phase || 30.8 N.m LXM32.D30N4 10 A, 480 V, three phase
Shaft Diameter:
24 mm
Feedback Type:
multiturn SinCos Hiperface
Maximum Axial Force Fa:
0.2 x Fr
Continuous Power:
2.85 W
China Rohs Regulation:
X
Range Compatibility:
Lexium 32
Holding Brake:
with
Nominal Speed:
2000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase
Rotor Inertia:
17.96 kg.cm²
Length:
187 mm
Maximum Radial Force Fr:
1930 N 1000 rpm || 1530 N 2000 rpm || 1340 N 3000 rpm
Torque Constant:
1.2 N.m/A 120 °C
Stator Resistance:
0.69 Ohm 20 °C
Shaft Length:
50 mm
Maximum Mechanical Speed:
4000 rpm
Electrical Connection:
straight connectors
Net Weight:
10.3 kg
Warranty:
18 months
Stator Inductance:
6.7 mH 20 °C
Maximum Permanent Current:
29.8 A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Holding Torque:
18 N.m holding brake
Product Compatibility:
LXM32.D30M2 230 V single phase || LXM32.D30N4 400...480 V three phase
[Us] Rated Supply Voltage:
480 V
Stator Electrical Time Constant:
9.7 ms 20 °C
Nominal Torque:
6.9 N.m LXM32.D30M2 10 A, 230 V, single phase || 7.7 N.m LXM32.D30N4 10 A, 400 V, three phase || 7.7 N.m LXM32.D30N4 10 A, 480 V, three phase
Sustainable Offer Status:
Green Premium product
Brake Pull-In Power:
18 W
Product Or Component Type:
servo motor
Key Width:
40 mm
Type Of Cooling:
natural convection
Mercury Free:
Yes
Pvc Free:
Yes
Motor Flange Size:
140 mm
Environmental Disclosure:
ENVPEP111002EN
Shaft End:
keyed
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mounting Holes Diameter:
11 mm
Mounting Support:
international standard flange
Rohs Exemption Information:
Yes
Circle Diameter Of The Mounting Holes:
165 mm
Number Of Motor Stacks:
1
Maximum Current Irms:
29.8 A LXM32.D30M2 || 29.8 A LXM32.D30N4
Ip Degree Of Protection:
IP54 standard
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Continuous Stall Current:
8.58 A
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Continuous Stall Torque:
10.3 N.m LXM32.D30M2 10 A, 230 V, single phase || 10.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 10.3 N.m LXM32.D30N4 10 A, 480 V, three phase
Nominal Output Power:
1450 W LXM32.D30M2 10 A, 230 V, single phase || 2400 W LXM32.D30N4 10 A, 400 V, three phase || 2400 W LXM32.D30N4 10 A, 480 V, three phase
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 4000RPM and keyed shaft end without holding...
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed...
