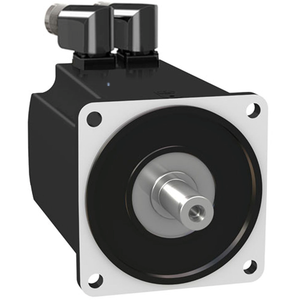

Schneider Electric BMH1401P21A1A Motor 140Mm Iec 10,3Nm Ip65/67 2640W No

Schneider Electric BMH1401P21A1A Motor 140Mm Iec 10,3Nm Ip65/67 2640W No

Schneider Electric
SKU:
BMH1401P21A1A
|
UPC:
3606485201146
$2,618.64
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
servo motor BMH, Lexium 32, 10.3Nm, 4000rpm, untapped shaft, without brake, IP65, IP67, 128bit encoder, straight
Additional Information
Feedback Type:
single turn SinCos Hiperface
Product Or Component Type:
servo motor
Mounting Support:
international standard flange
Second Shaft:
without second shaft end
Mercury Free:
Yes
Maximum Current Irms:
29.8 A LXM32.D30M2 || 29.8 A LXM32.D30N4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Number Of Mounting Holes:
4
Device Short Name:
BMH
Electrical Connection:
straight connectors
Nominal Output Power:
1450 W LXM32.D30M2 10 A, 230 V, single phase || 2400 W LXM32.D30N4 10 A, 400 V, three phase || 2400 W LXM32.D30N4 10 A, 480 V, three phase
Motor Flange Size:
140 mm
Sustainable Offer Status:
Green Premium product
Type Of Cooling:
natural convection
Length:
152 mm
Rohs Exemption Information:
Yes
[Us] Rated Supply Voltage:
480 V
Maximum Permanent Current:
29.8 A
Rotor Inertia:
16.46 kg.cm²
Nominal Speed:
2000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase
Shaft Length:
50 mm
Continuous Power:
2.85 W
Speed Feedback Resolution:
131072 points/turn
Environmental Disclosure:
ENVPEP111002EN
Shaft End:
smooth shaft
Number Of Motor Stacks:
1
Stator Resistance:
0.69 Ohm 20 °C
Mounting Holes Diameter:
11 mm
Back Emf Constant:
77.4 V/krpm 120 °C
Net Weight:
8 kg
Stator Electrical Time Constant:
9.7 ms 20 °C
Stator Inductance:
6.7 mH 20 °C
Torque Constant:
1.2 N.m/A 120 °C
Warranty:
18 months
Pvc Free:
Yes
Peak Stall Torque:
30.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 30.8 N.m LXM32.D30N4 10 A, 400 V, three phase || 30.8 N.m LXM32.D30N4 10 A, 480 V, three phase
Range Compatibility:
Lexium 32
Centring Collar Diameter:
130 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Compatibility:
LXM32.D30M2 230 V single phase || LXM32.D30N4 400...480 V three phase
Centring Collar Depth:
3.5 mm
Maximum Mechanical Speed:
4000 rpm
Circularity Profile:
N/A
Maximum Radial Force Fr:
1930 N 1000 rpm || 1530 N 2000 rpm || 1340 N 3000 rpm
Continuous Stall Torque:
10.3 N.m LXM32.D30M2 10 A, 230 V, single phase || 10.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 10.3 N.m LXM32.D30N4 10 A, 480 V, three phase
Phase:
three phase
Continuous Stall Current:
8.58 A
Holding Brake:
without
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Axial Force Fa:
0.2 x Fr
Circle Diameter Of The Mounting Holes:
165 mm
Nominal Torque:
6.9 N.m LXM32.D30M2 10 A, 230 V, single phase || 7.7 N.m LXM32.D30N4 10 A, 400 V, three phase || 7.7 N.m LXM32.D30N4 10 A, 480 V, three phase
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Shaft Diameter:
24 mm
Number Of Motor Poles:
10
Datasheet:
View
