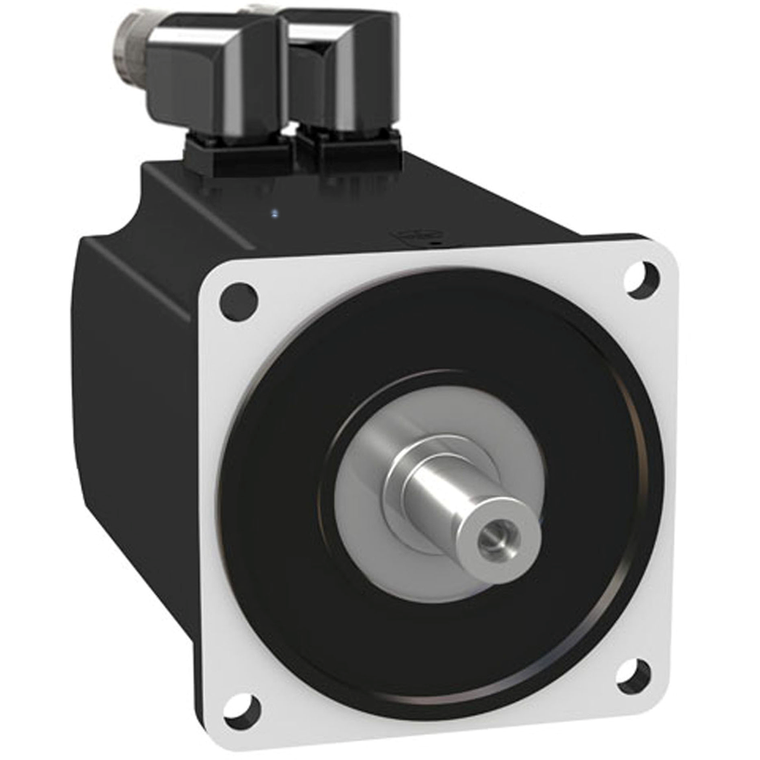

Schneider Electric BMH1402P37F2A Motor 140Mm Iec 18,5Nm Ip65/67 3900W

SKU:

BMH1402P37F2A

UPC:

3606485207971

MPN:

Condition:

New

Pvc Free:

Yes

Number Of Mounting Holes:

4

Rotor Inertia:

33.5 kg.cm²

Product Or Component Type:

servo motor

Mounting Support:

international standard flange

Maximum Permanent Current:

57.4 A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Continuous Stall Current:

16.83 A

Nominal Torque:

12.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.2 N.m LXM32.D72N4 24 A, 480 V, three phase

Circularity Profile:

N/A

Centring Collar Depth:

3.5 mm

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shaft Length:

50 mm

Holding Brake:

with

Circle Diameter Of The Mounting Holes:

165 mm

Back Emf Constant:

70.7 V/krpm 120 °C

Number Of Motor Stacks:

2

Maximum Radial Force Fr:

2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm

Continuous Power:

4.44 W

Centring Collar Diameter:

130 mm

China Rohs Regulation:

X

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Stator Electrical Time Constant:

13 ms 20 °C

Shaft End:

keyed

Maximum Current Irms:

57.4 A LXM32.D72N4

Shaft Diameter:

24 mm

Feedback Type:

multiturn SinCos Hiperface

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

BMH

Type Of Cooling:

natural convection

Environmental Disclosure:

ENVPEP111002EN

Nominal Speed:

3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase

Phase:

three phase

Continuous Stall Torque:

18.5 N.m LXM32.D72N4 24 A, 400 V, three phase || 18.5 N.m LXM32.D72N4 24 A, 480 V, three phase

Nominal Output Power:

3500 W LXM32.D72N4 24 A, 400 V, three phase || 3500 W LXM32.D72N4 24 A, 480 V, three phase

Stator Resistance:

0.23 Ohm 20 °C

Maximum Mechanical Speed:

4000 rpm

Brake Pull-In Power:

18 W

Sustainable Offer Status:

Green Premium product

Length:

227 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Holding Torque:

18 N.m holding brake

Stator Inductance:

3 mH 20 °C

Warranty:

18 months

Motor Flange Size:

140 mm

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Mounting Holes Diameter:

11 mm

Maximum Axial Force Fa:

0.2 x Fr

Net Weight:

14.3 kg

Peak Stall Torque:

50.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 50.3 N.m LXM32.D72N4 24 A, 480 V, three phase

Electrical Connection:

rotatable right-angled connectors

Torque Constant:

1.1 N.m/A 120 °C

Speed Feedback Resolution:

32768 points/turn x 4096 turns

[Us] Rated Supply Voltage:

480 V

Second Shaft:

without second shaft end

Number Of Motor Poles:

10

Key Width:

40 mm

Range Compatibility:

Lexium 32

Mercury Free:

Yes
