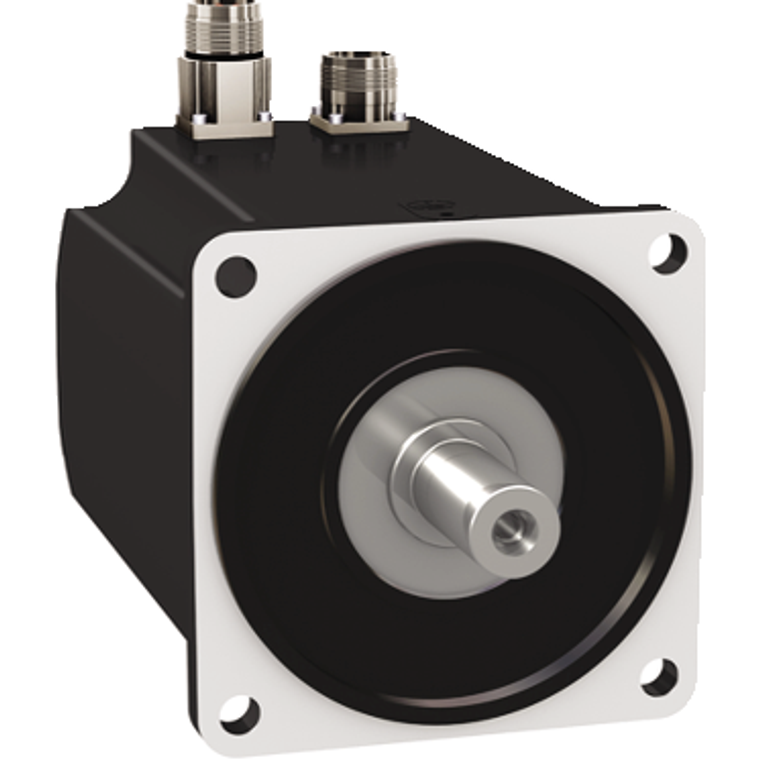

Schneider Electric BMH1403P26F1A Motor 140Mm Iec 25Nm Ip65/67 4700W No
SKU:
BMH1403P26F1A
UPC:
3606485208206
MPN:
Condition:
New
Product Or Component Type:
servo motor
Continuous Stall Torque:
24 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase
Torque Constant:
1.34 N.m/A 120 °C
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Nominal Output Power:
4700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase
Mounting Support:
international standard flange
Maximum Current Irms:
62.3 A LXM32.D72N4
Nominal Torque:
13.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Type Of Cooling:
natural convection
Brake Pull-In Power:
19 W
Centring Collar Depth:
3.5 mm
Second Shaft:
without second shaft end
Mounting Holes Diameter:
11 mm
Speed Feedback Resolution:
32768 points/turn
Circle Diameter Of The Mounting Holes:
165 mm
Maximum Radial Force Fr:
2420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm
Sustainable Offer Status:
Green Premium product
Continuous Power:
4.8 W
Number Of Motor Poles:
10
Mercury Free:
Yes
Pvc Free:
Yes
Number Of Mounting Holes:
4
Rotor Inertia:
50.27 kg.cm²
Stator Inductance:
3 mH 20 °C
Rohs Exemption Information:
Yes
Stator Electrical Time Constant:
13.6 ms 20 °C
Shaft End:
smooth shaft
[Us] Rated Supply Voltage:
480 V
Nominal Speed:
3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase
Warranty:
18 months
Electrical Connection:
straight connectors
Shaft Diameter:
24 mm
Holding Torque:
23 N.m holding brake
Product Compatibility:
LXM32.D72N4 400...480 V three phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Length:
267 mm
Holding Brake:
with
Environmental Disclosure:
ENVPEP111002EN
China Rohs Regulation:
X
Maximum Mechanical Speed:
4000 rpm
Device Short Name:
BMH
Phase:
three phase
Range Compatibility:
Lexium 32
Shaft Length:
50 mm
Circularity Profile:
N/A
Stator Resistance:
0.22 Ohm 20 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Back Emf Constant:
85.9 V/krpm 120 °C
Number Of Motor Stacks:
3
Centring Collar Diameter:
130 mm
Motor Flange Size:
140 mm
Maximum Axial Force Fa:
0.2 x Fr
Continuous Stall Current:
18 A
Maximum Permanent Current:
62.3 A
Feedback Type:
single turn SinCos Hiperface
Peak Stall Torque:
71.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase
