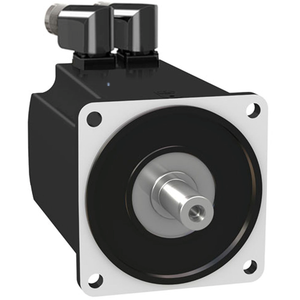

Schneider Electric BMH1403P32A1A Motor 140Mm Iec 25Nm Ip65/67 4700W Key
SKU:
BMH1403P32A1A
UPC:
3606485208015
MPN:
Condition:
New
Number Of Mounting Holes:
4
Mercury Free:
Yes
Feedback Type:
multiturn SinCos Hiperface
Number Of Motor Stacks:
3
Product Compatibility:
LXM32.D72N4 400...480 V three phase
Net Weight:
16 kg
Warranty:
18 months
[Us] Rated Supply Voltage:
480 V
Continuous Stall Torque:
24 N.m LXM32.D72N4 24 A, 400 V, three phase || 24 N.m LXM32.D72N4 24 A, 480 V, three phase
Holding Brake:
without
Number Of Motor Poles:
10
Stator Electrical Time Constant:
13.6 ms 20 °C
Nominal Speed:
3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase
Sustainable Offer Status:
Green Premium product
Back Emf Constant:
85.9 V/krpm 120 °C
Mounting Support:
international standard flange
Circularity Profile:
N/A
China Rohs Regulation:
X
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Rotor Inertia:
47.5 kg.cm²
Continuous Power:
4.8 W
Maximum Radial Force Fr:
2420 N 1000 rpm || 1920 N 2000 rpm || 1680 N 3000 rpm
Continuous Stall Current:
18 A
Range Compatibility:
Lexium 32
Nominal Output Power:
4700 W LXM32.D72N4 24 A, 400 V, three phase || 4700 W LXM32.D72N4 24 A, 480 V, three phase
Product Or Component Type:
servo motor
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Stator Resistance:
0.22 Ohm 20 °C
Maximum Mechanical Speed:
4000 rpm
Second Shaft:
without second shaft end
Mounting Holes Diameter:
11 mm
Shaft Length:
50 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circle Diameter Of The Mounting Holes:
165 mm
Stator Inductance:
3 mH 20 °C
Device Short Name:
BMH
Centring Collar Depth:
3.5 mm
Rohs Exemption Information:
Yes
Pvc Free:
Yes
Environmental Disclosure:
ENVPEP111002EN
Phase:
three phase
Type Of Cooling:
natural convection
Electrical Connection:
straight connectors
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Peak Stall Torque:
71.8 N.m LXM32.D72N4 24 A, 400 V, three phase || 71.8 N.m LXM32.D72N4 24 A, 480 V, three phase
Speed Feedback Resolution:
131072 points/turn x 4096 turns
Centring Collar Diameter:
130 mm
Torque Constant:
1.34 N.m/A 120 °C
Nominal Torque:
13.92 N.m LXM32.D72N4 24 A, 400 V, three phase || 13.92 N.m LXM32.D72N4 24 A, 480 V, three phase
