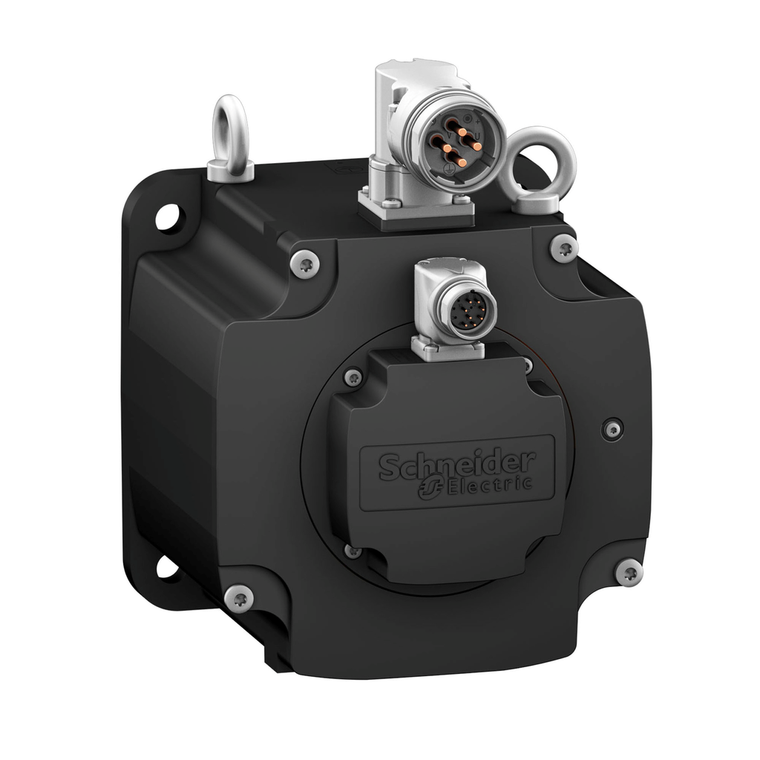

Schneider Electric BMH1901P31F2A Motor 190Mm Iec 30Nm Ip65/67 5.2Kw Key

(No reviews yet) Write a Review

Write a Review

Schneider Electric BMH1901P31F2A Motor 190Mm Iec 30Nm Ip65/67 5.2Kw Key

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMH1901P31F2A

UPC:

3.60649E+12

MPN:

Condition:

New

Maximum Permanent Current:

89.6 A

Continuous Stall Current:

23.2 A

Brake Pull-In Power:

40 W

Electrical Connection:

rotatable right-angled connectors

Number Of Motor Stacks:

1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Net Weight:

20.5 kg

Torque Constant:

1.3 N.m/A 120 °C

Environmental Disclosure:

ENVPEP111049EN

Shaft Diameter:

38 mm

Peak Stall Torque:

77.7 N.m LXM32.D72N4 24 A, 400 V, three phase || 77.7 N.m LXM32.D72N4 24 A, 480 V, three phase || 86.6 N.m LXM32MD85N4 32 A, 400 V, three phase || 86.6 N.m LXM32MD85N4 32 A, 480 V, three phase || 89.7 N.m LXM32MC10N4 40 A, 400 V, three phase || 89.7

Circle Diameter Of The Mounting Holes:

215 mm

Range Compatibility:

Lexium 32

Key Width:

70 mm

Nominal Output Power:

4800 W LXM32.D72N4 24 A, 400 V, three phase || 4800 W LXM32.D72N4 24 A, 480 V, three phase || 5180 W LXM32MD85N4 32 A, 400 V, three phase || 5180 W LXM32MD85N4 32 A, 480 V, three phase || 5180 W LXM32MC10N4 40 A, 400 V, three phase || 5180 W LXM32MC1

Nominal Torque:

18.4 N.m LXM32.D72N4 24 A, 400 V, three phase || 18.4 N.m LXM32.D72N4 24 A, 480 V, three phase || 16.5 N.m LXM32MD85N4 32 A, 400 V, three phase || 16.5 N.m LXM32MD85N4 32 A, 480 V, three phase || 16.5 N.m LXM32MC10N4 40 A, 400 V, three phase || 16.5

Type Of Cooling:

natural convection

Circularity Profile:

N/A

Mounting Support:

international standard flange

Centring Collar Diameter:

180 mm

Maximum Current Irms:

72 A LXM32.D72N4

Warranty:

18 months

Back Emf Constant:

87.6 V/krpm 120 °C

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Maximum Axial Force Fa:

0.2 x Fr

Maximum Radial Force Fr:

3730 N 1000 rpm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Holding Torque:

80 N.m holding brake

Device Short Name:

BMH

[Us] Rated Supply Voltage:

480 V

Nominal Speed:

2500 rpm LXM32.D72N4 24 A, 400 V, three phase || 2500 rpm LXM32.D72N4 24 A, 480 V, three phase || 3000 rpm LXM32MD85N4 32 A, 400 V, three phase || 3000 rpm LXM32MD85N4 32 A, 480 V, three phase || 3000 rpm LXM32MC10N4 40 A, 400 V, three phase || 3000

Feedback Type:

single turn SinCos Hiperface

Number Of Motor Poles:

10

Product Or Component Type:

servo motor

Phase:

three phase

Rotor Inertia:

71.7 kg.cm²

Stator Electrical Time Constant:

21.2 ms 20 °C

Continuous Stall Torque:

30 N.m LXM32.D72N4 24 A, 400 V, three phase || 30 N.m LXM32.D72N4 24 A, 480 V, three phase || 30 N.m LXM32MD85N4 32 A, 400 V, three phase || 30 N.m LXM32MD85N4 32 A, 480 V, three phase || 30 N.m LXM32MC10N4 40 A, 400 V, three phase || 30 N.m LXM32MC1

Continuous Power:

5.24 W

Maximum Mechanical Speed:

4000 rpm

Pvc Free:

Yes

Mercury Free:

Yes

Shaft End:

keyed

Second Shaft:

without second shaft end

China Rohs Regulation:

X

Speed Feedback Resolution:

131072 points/turn

Stator Resistance:

0.24 Ohm 20 °C

Motor Flange Size:

190 mm

Number Of Mounting Holes:

4

Length:

250 mm

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Mounting Holes Diameter:

14 mm

Product Compatibility:

LXM32.D72N4 400...480 V three phase

Shaft Length:

80 mm

Holding Brake:

with

Stator Inductance:

5.08 mH 20 °C

Centring Collar Depth:

4 mm
