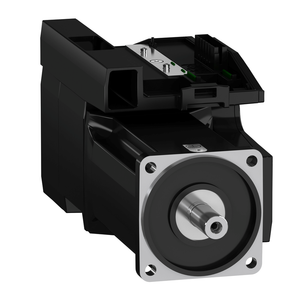

Schneider Electric BMI1002P16A Mot 3P 100Mm Ip54 1,9Kw Key Enc Sgt 16
Schneider Electric
$1,891.42
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 6000RPM and keyed shaft without holding brake. It is equipped with a SinCos Hiperface® encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMI servo motor has a medium inertia motor, which means it is particularly suitable for medium and high-load applications. It helps to simplify installation and adjustment through a more robust adjustment of the movement. It is a servo motor with a rated supply voltage of 208V to 480V and a continuous output current of 4A at 8kHz. The shaft dimensions are 19mm (Diameter) x 40mm (Length). It is furnished with printed circuit board connector for electrical connection. It is an IP54 (shaft) and IP65 (housing) rated product. Its dimensions are 273mm (Length) x 100mm (Width) and centring collar dimensions are 3.5mm (Depth) x 95mm (Diameter) with 115mm circle diameter of the mounting hole. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is compatible with drive control unit LXM32i CANopen and drive control unit LXM32i EtherCAT. It supports international standard 100mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the control unit, which provides automatic motor identification when the Lexium 32i starts. Lexium BMI servo motor provides high power density values to optimize machine compactness. BMI servo motor has a medium inertia motor, which means they are particularly suitable for medium and high-load applications.
- Maximum Mechanical Speed:
- 6000 rpm
- Sustainable Offer Status:
- Green Premium product
- Holding Brake:
- without
- Maximum Radial Force Fr:
- 990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm || 580 N 5000 rpm
- Stator Inductance:
- 9.79 mH 20 °C
- Product Compatibility:
- drive control unit LXM32i CANopen || drive control unit LXM32i EtherCAT
- Second Shaft:
- without second shaft end
- Mounting Holes Diameter:
- 9 mm
- Feedback Type:
- absolute single turn SinCos Hiperface
- Continuous Stall Current:
- 0.166666666666667
- Centring Collar Depth:
- 3.5 mm
- Nominal Speed:
- 1900 rpm 208 V three phase || 3800 rpm 400 V three phase || 4700 rpm 480 V three phase
- Nominal Torque:
- 5.1 N.m 400 V three phase || 5.4 N.m 208 V three phase || 4.1 N.m 480 V three phase
- Speed Feedback Resolution:
- 32768 points/turn
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Or Component Type:
- servo motor with power stage
- Mounting Support:
- international standard flange
- Type Of Cooling:
- natural convection
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Short Name:
- BMI
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Network Frequency Limits:
- 47.5-63 Hz
- Back Emf Constant:
- 84.52 V/krpm 20 °C
- Circularity Profile:
- ENVEOLI1312017EN
- Rotor Inertia:
- 6.28 kg.cm²
- Number Of Motor Stacks:
- 2
- Maximum Axial Force Fa:
- 0.2 x Fr
- Distance Shaft Shoulder-Flange:
- 3.5 mm
- Pvc Free:
- Yes
- [Us] Rated Supply Voltage:
- 208...480 V - 15...10 %
- Electrical Connection:
- printed circuit board connector
- Supply Voltage Limits:
- 208-480 V
- Maximum Current Irms:
- 17.5 A 208 V, three phase || 17.5 A 400 V, three phase || 17.5 A 480 V, three phase
- Emc Filter:
- integrated
- Phase:
- three phase
- Stator Electrical Time Constant:
- 4.17 ms 20 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circle Diameter Of The Mounting Holes:
- 115-115 mm
- Continuous Stall Torque:
- 6 N.m 208...480 V three phase
- Stator Resistance:
- 2.347 Ohm 20 °C
- Ip Degree Of Protection:
- shaft IP54 || housing IP65
- Torque Constant:
- 1.28 N.m/A 20 °C
- Peak Stall Torque:
- 14 N.m 208 V three phase || 14 N.m 400 V three phase || 14 N.m 480 V three phase
- Range Compatibility:
- Lexium 32i
- Number Of Motor Poles:
- 10
- Continuous Output Current:
- 4 A 8 kHz
- Centring Collar Diameter:
- 95 mm
- Environmental Disclosure:
- ENVPEP1312017EN
- Shaft Length:
- 40 mm
- Nominal Output Power:
- 1000 W 208 V three phase || 1900 W 400 V three phase || 1900 W 480 V three phase
- Number Of Mounting Holes:
- 4
- Shaft End:
- keyed
- Key Width:
- 6 mm
- Supply Frequency:
- 50/60 Hz - 5...5 %
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Shaft Diameter:
- 19 mm
- Output Current 3S Peak:
- 12 A 400 V 3 s
- Length:
- 273 mm
- Motor Flange Size:
- 100 mm
- China Rohs Regulation:
- X
