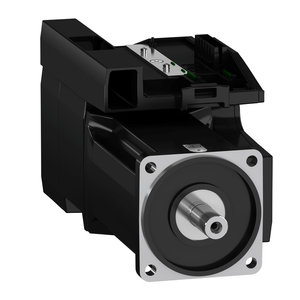

Schneider Electric BMI1003P07F Mot 3P 100Mm Ip54 2,2Kw Nky Enc Mlt 16
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 6000RPM, keyed shaft and holding brake. It is equipped with a SinCos Hiperface® encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMI servo motor has a medium inertia motor, which means it is particularly suitable for medium and high-load applications. It helps to simplify installation and adjustment through a more robust adjustment of the movement. It is a servo motor with a rated supply voltage of 208V to 480V and a continuous output current of 4A at 8kHz. The shaft dimensions are 19mm (Diameter) x 40mm (Length). It is furnished with printed circuit board connector for electrical connection. It is an IP54 (shaft) and IP65 (housing) rated product. Its dimensions are 338mm (Length) x 100mm (Width) and centring collar dimensions are 3.5mm (Depth) x 95mm (Diameter) with 115mm circle diameter of the mounting hole. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is compatible with drive control unit LXM32i CANopen and drive control unit LXM32i EtherCAT. It supports international standard 100mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the control unit, which provides automatic motor identification when the Lexium 32i starts. Lexium BMI servo motor provides high power density values to optimize machine compactness. BMI servo motor has a medium inertia motor, which means they are particularly suitable for medium and high-load applications.
- Product Compatibility:
- drive control unit LXM32i CANopen || drive control unit LXM32i EtherCAT
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Shaft Length:
- 40 mm
- Range Compatibility:
- Lexium 32i
- Device Short Name:
- BMI
- Holding Torque:
- 9 N.m holding brake
- Mercury Free:
- Yes
- Number Of Motor Stacks:
- 3
- Stator Electrical Time Constant:
- 4.95 ms 20 °C
- China Rohs Regulation:
- X
- Number Of Motor Poles:
- 10
- Product Or Component Type:
- servo motor with power stage
- [Us] Rated Supply Voltage:
- 208...480 V - 15...10 %
- Centring Collar Diameter:
- 95 mm
- Brake Pull-In Power:
- 8 W
- Emc Filter:
- integrated
- Number Of Mounting Holes:
- 4
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Stator Resistance:
- 2.31 Ohm 20 °C
- Rohs Exemption Information:
- Yes
- Continuous Stall Current:
- 0.166666666666667
- Shaft Diameter:
- 19 mm
- Maximum Axial Force Fa:
- 0.2 x Fr
- Continuous Output Current:
- 4 A 8 kHz
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Maximum Current Irms:
- 26.7 A 208 V, three phase || 26.7 A 400 V, three phase || 26.7 A 480 V, three phase
- Holding Brake:
- with
- Type Of Cooling:
- natural convection
- Second Shaft:
- without second shaft end
- Sustainable Offer Status:
- Green Premium product
- Peak Stall Torque:
- 19.2 N.m 400 V three phase || 19.2 N.m 480 V three phase || 19.2 N.m 208 V three phase
- Distance Shaft Shoulder-Flange:
- 3.5 mm
- Environmental Disclosure:
- ENVPEP1312017EN
- Maximum Radial Force Fr:
- 1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm || 610 N 5000 rpm
- Network Frequency Limits:
- 47.5-63 Hz
- Ip Degree Of Protection:
- shaft IP54 || housing IP65
- Maximum Mechanical Speed:
- 6000 rpm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Centring Collar Depth:
- 3.5 mm
- Rotor Inertia:
- 10.3 kg.cm²
- Phase:
- three phase
- Supply Frequency:
- 50/60 Hz - 5...5 %
- Shaft End:
- untapped
- Length:
- 338 mm
- Pvc Free:
- Yes
- Stator Inductance:
- 11.43 mH 20 °C
- Continuous Stall Torque:
- 8.5 N.m 208...480 V three phase
- Nominal Output Power:
- 1000 W 208 V three phase || 2000 W 400 V three phase || 2100 W 480 V three phase
- Output Current 3S Peak:
- 12 A 400 V 3 s
- Circle Diameter Of The Mounting Holes:
- 115-115 mm
- Nominal Speed:
- 1500 rpm 208 V three phase || 3000 rpm 400 V three phase || 3700 rpm 480 V three phase
- Speed Feedback Resolution:
- 32768 points/turn x 4096 turns
- Feedback Type:
- absolute multiturn SinCos Hiperface
- Nominal Torque:
- 7.2 N.m 208 V three phase || 6.8 N.m 400 V three phase || 5.6 N.m 480 V three phase
- Electrical Connection:
- printed circuit board connector
- Back Emf Constant:
- 112 V/krpm 20 °C
- Mounting Support:
- international standard flange
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI1312017EN
- Mounting Holes Diameter:
- 9 mm
- Motor Flange Size:
- 100 mm
- Supply Voltage Limits:
- 208-480 V
- Torque Constant:
- 1.7 N.m/A 20 °C
- Datasheet:
- View
