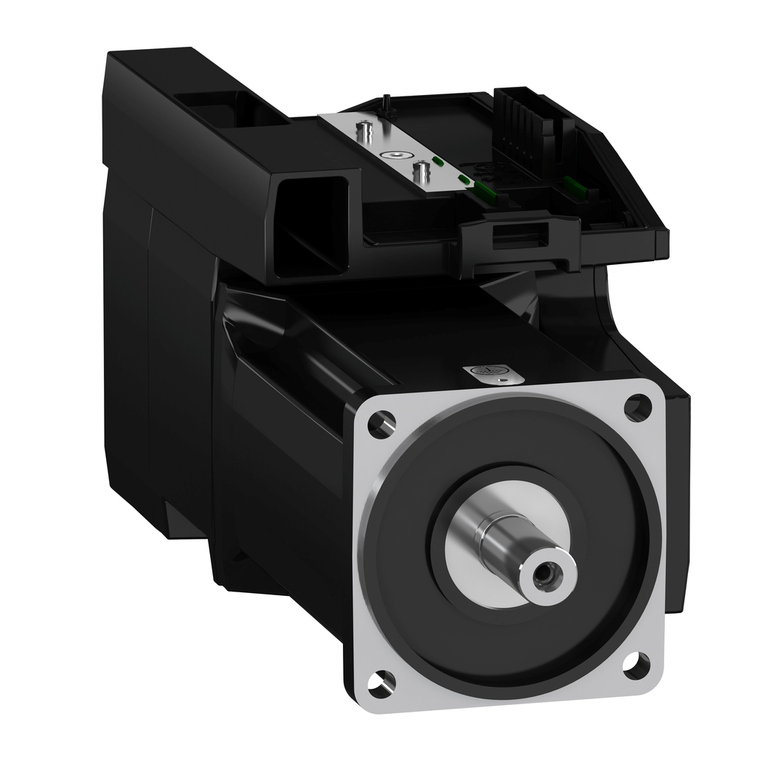

Schneider Electric BMI1003P17F Mot 3P 100Mm Ip54 2,2Kw Key Enc Mlt 16
SKU:
BMI1003P17F
UPC:
3606485377711
MPN:
Condition:
New
Peak Stall Torque:
19.2 N.m 400 V three phase || 19.2 N.m 480 V three phase || 19.2 N.m 208 V three phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Type Of Cooling:
natural convection
China Rohs Regulation:
X
Holding Brake:
with
Key Width:
6 mm
Rotor Inertia:
10.3 kg.cm²
Number Of Mounting Holes:
4
Pvc Free:
Yes
Shaft Length:
40 mm
Brake Pull-In Power:
8 W
Number Of Motor Poles:
10
Length:
338 mm
Product Or Component Type:
servo motor with power stage
Maximum Axial Force Fa:
0.2 x Fr
Nominal Torque:
7.2 N.m 208 V three phase || 6.8 N.m 400 V three phase || 5.6 N.m 480 V three phase
Stator Electrical Time Constant:
4.95 ms 20 °C
Back Emf Constant:
112 V/krpm 20 °C
Phase:
three phase
Centring Collar Diameter:
95 mm
Nominal Output Power:
1000 W 208 V three phase || 2000 W 400 V three phase || 2100 W 480 V three phase
Shaft End:
keyed
[Us] Rated Supply Voltage:
208...480 V - 15...10 %
Number Of Motor Stacks:
3
Mounting Support:
international standard flange
Device Short Name:
BMI
Mercury Free:
Yes
Electrical Connection:
printed circuit board connector
Feedback Type:
absolute multiturn SinCos Hiperface
Range Compatibility:
Lexium 32i
Warranty:
18 months
Second Shaft:
without second shaft end
Continuous Output Current:
4 A 8 kHz
Supply Frequency:
50/60 Hz - 5...5 %
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shaft Diameter:
19 mm
Maximum Current Irms:
26.7 A 208 V, three phase || 26.7 A 400 V, three phase || 26.7 A 480 V, three phase
Supply Voltage Limits:
208-480 V
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Distance Shaft Shoulder-Flange:
3.5 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Network Frequency Limits:
47.5-63 Hz
Circle Diameter Of The Mounting Holes:
115-115 mm
Ip Degree Of Protection:
shaft IP54 || housing IP65
Mounting Holes Diameter:
9 mm
Centring Collar Depth:
3.5 mm
Maximum Mechanical Speed:
6000 rpm
Continuous Stall Current:
0.166666666666667
Emc Filter:
integrated
Nominal Speed:
1500 rpm 208 V three phase || 3000 rpm 400 V three phase || 3700 rpm 480 V three phase
Rohs Exemption Information:
Yes
Stator Resistance:
2.31 Ohm 20 °C
Holding Torque:
9 N.m holding brake
Product Compatibility:
drive control unit LXM32i CANopen || drive control unit LXM32i EtherCAT
Torque Constant:
1.7 N.m/A 20 °C
Circularity Profile:
ENVEOLI1312017EN
Output Current 3S Peak:
12 A 400 V 3 s
Speed Feedback Resolution:
32768 points/turn x 4096 turns
Environmental Disclosure:
ENVPEP1312017EN
Maximum Radial Force Fr:
1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm || 610 N 5000 rpm
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of...
