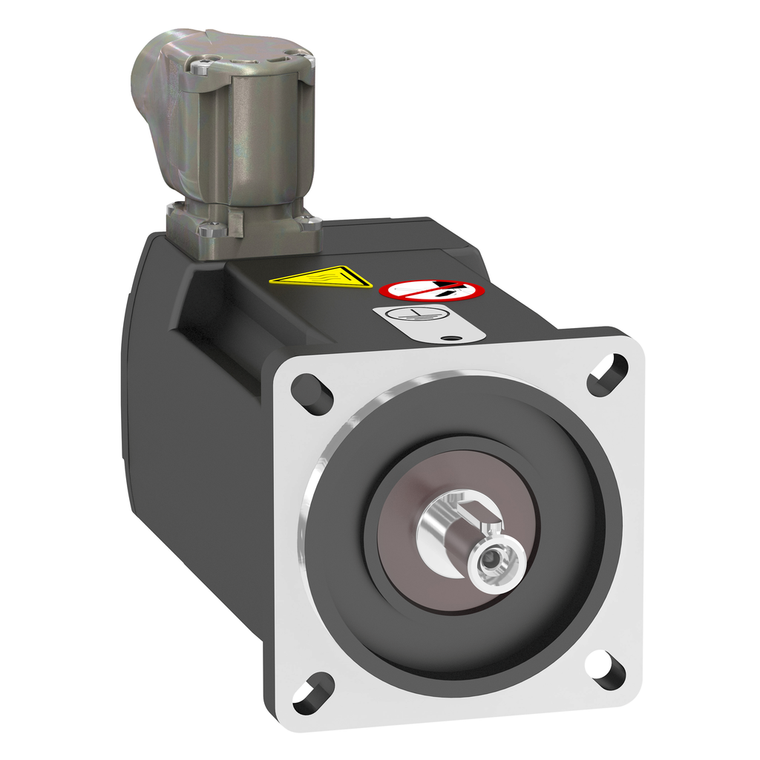

Schneider Electric BMP0702F3NA2A Synchronous Motor 480Vac 0,55Kw Ip65 Iec

(No reviews yet) Write a Review

Write a Review

Schneider Electric BMP0702F3NA2A Synchronous Motor 480Vac 0,55Kw Ip65 Iec

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BMP0702F3NA2A

UPC:

3606480564406

MPN:

Condition:

New

Net Weight:

1.8 kg

Minimum Operating Frequency:

25 Hz ATV32 0.55 kW 400 V three phase || 25 Hz ATV320 0.55 kW 400 V three phase

Product Or Component Type:

synchronous motor

Rotor Inertia:

1.13 kg.cm²

Mounting Support:

international standard flange

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Mounting Holes:

4

Circle Diameter Of The Mounting Holes:

75-82 mm

Centring Collar Depth:

2.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Connection:

rotatable right-angled connector

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Motor Poles:

5

Warranty:

18 months

Stator Resistance:

6.96 Ohm 40 °C

Maximum Axial Force Fa:

0.2 x Fr

Number Of Motor Stacks:

2

Product Compatibility:

variable speed drive ATV32 0.55 kW 400 V three phase || variable speed drive ATV320 0.55 kW 380...500 V three phase

Maximum Current Irms:

2.9 A ATV32 0.55 kW 400 V three phase || 2.9 A ATV320 0.55 kW 400 V three phase

Holding Brake:

without

Key Width:

4 mm

Rohs Exemption Information:

Yes

Device Short Name:

BMP

Nominal Speed:

3000 rpm ATV32 0.55 kW 400 V three phase || 3000 rpm ATV320 0.55 kW 400 V three phase

Maximum Radial Force Fr:

710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm

Shaft End:

keyed

Shaft Length:

23 mm

Nominal Torque:

1.75 N.m ATV32 0.55 kW 400 V three phase || 1.75 N.m ATV320 0.55 kW 400 V three phase

China Rohs Regulation:

X

Mercury Free:

Yes

[Us] Rated Supply Voltage:

480 V

Nominal Output Power:

550 W ATV32 0.55 kW 400 V three phase || 550 W ATV320 0.55 kW 400 V three phase

Pvc Free:

Yes

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Torque Constant:

1.51 N.m/A 40 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Operating Frequency:

300 Hz ATV32 0.55 kW 400 V three phase || 300 Hz ATV320 0.55 kW 400 V three phase

Shaft Diameter:

11 mm

Centring Collar Diameter:

60 mm

Range Compatibility:

Altivar Machine ATV320 || Altivar 32

Motor Flange Size:

70 mm

Nominal Operating Frequency:

250 Hz ATV32 0.55 kW 400 V three phase || 250 Hz ATV320 0.55 kW 400 V three phase

Phase:

three phase

Length:

154 mm

Type Of Cooling:

natural convection

Mounting Holes Diameter:

5.5 mm

Stator Inductance:

20.7 mH for q-axis winding 40 °C || 20.7 mH for d-axis winding 40 °C

Maximum Mechanical Speed:

3600 rpm

Datasheet:

View
