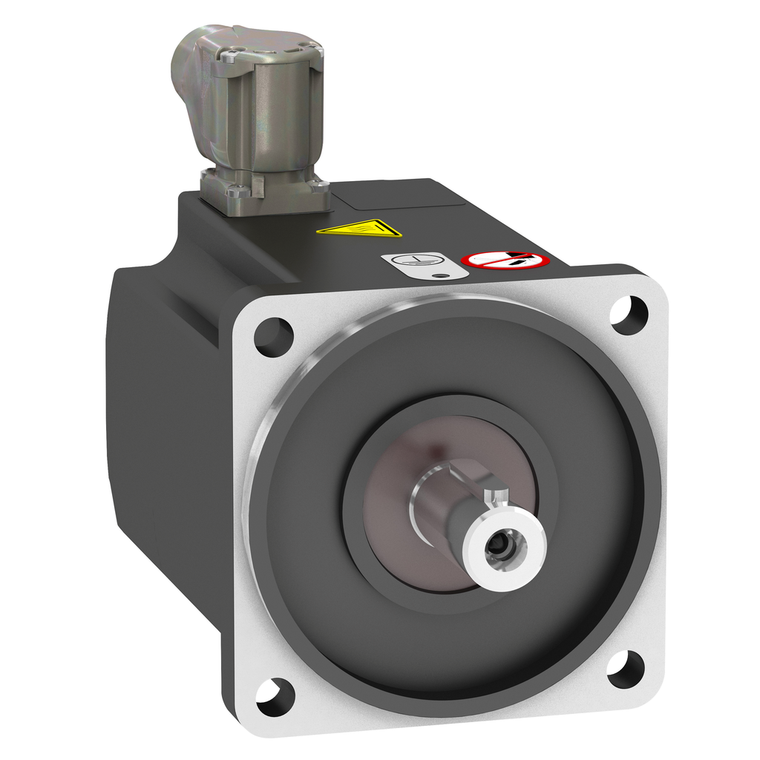

Schneider Electric BMP1002R3NA2A Synchronous Motor 230Vac 1,5Kw Ip65 Iec

SKU:

BMP1002R3NA2A

UPC:

3.60648E+12

MPN:

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rohs Exemption Information:

Yes

Nominal Torque:

3.5 N.m ATV32 1.1 kW 200 V single phase || 4.77 N.m ATV32 1.5 kW 200 V single phase || 3.5 N.m ATV320 1.1 kW 200 V single phase || 4.77 N.m ATV320 1.5 kW 200 V single phase

Circle Diameter Of The Mounting Holes:

115-115 mm

China Rohs Regulation:

X

Type Of Cooling:

natural convection

Shaft Diameter:

19 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Holding Brake:

without

Shaft End:

keyed

Stator Inductance:

2.18 mH for q-axis winding 40 °C || 1.89 mH for d-axis winding 40 °C

Ip Degree Of Protection:

IP65 standard || IP67 with IP67 kit

Product Compatibility:

variable speed drive ATV32 1.1 kW 200 V single phase || variable speed drive ATV32 1.5 kW 200 V single phase || variable speed drive ATV320 1.1 kW 200...240 V single phase || variable speed drive ATV320 1.5 kW 200...240 V single phase

Electrical Connection:

rotatable right-angled connector

Stator Resistance:

0.53 Ohm 40 °C

Torque Constant:

0.83 N.m/A 40 °C

Maximum Operating Frequency:

300 Hz ATV32 1.1 kW 200 V single phase || 300 Hz ATV32 1.5 kW 200 V single phase || 300 Hz ATV320 1.1 kW 200 V single phase || 300 Hz ATV320 1.5 kW 200 V single phase

Nominal Operating Frequency:

250 Hz ATV32 1.1 kW 200 V single phase || 250 Hz ATV32 1.5 kW 200 V single phase || 250 Hz ATV320 1.1 kW 200 V single phase || 250 Hz ATV320 1.5 kW 200 V single phase

Length:

160.6 mm

Maximum Axial Force Fa:

0.2 x Fr

Maximum Mechanical Speed:

3600 rpm

[Us] Rated Supply Voltage:

230 V

Rotor Inertia:

6.28 kg.cm²

Mounting Support:

international standard flange

Shaft Length:

40 mm

Device Short Name:

BMP

Warranty:

18 months

Nominal Output Power:

1100 W ATV32 1.1 kW 200 V single phase || 1500 W ATV32 1.5 kW 200 V single phase || 1100 W ATV320 1.1 kW 200 V single phase || 1500 W ATV320 1.5 kW 200 V single phase

Key Width:

6 mm

Range Compatibility:

Altivar 32 || Altivar Machine ATV320

Centring Collar Diameter:

95 mm

Minimum Operating Frequency:

25 Hz ATV32 1.1 kW 200 V single phase || 25 Hz ATV32 1.5 kW 200 V single phase || 25 Hz ATV320 1.1 kW 200 V single phase || 25 Hz ATV320 1.5 kW 200 V single phase

Pvc Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Current Irms:

10.4 A ATV32 1.1 kW 200 V single phase || 12 A ATV32 1.5 kW 200 V single phase || 10.4 A ATV320 1.1 kW 200 V single phase || 12 A ATV320 1.5 kW 200 V single phase

Number Of Motor Stacks:

2

Product Or Component Type:

synchronous motor

Centring Collar Depth:

3.5 mm

Net Weight:

4.92 kg

Mercury Free:

Yes

Number Of Motor Poles:

5

Mounting Holes Diameter:

9 mm

Phase:

single phase

Motor Flange Size:

100 mm

Maximum Radial Force Fr:

990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm

Number Of Mounting Holes:

4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Speed:

3000 rpm ATV32 1.1 kW 200 V single phase || 3000 rpm ATV32 1.5 kW 200 V single phase || 3000 rpm ATV320 1.1 kW 200 V single phase || 3000 rpm ATV320 1.5 kW 200 V single phase
