Schneider Electric BMXDDI3202K Dig 32I 24 Vdc Sink
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

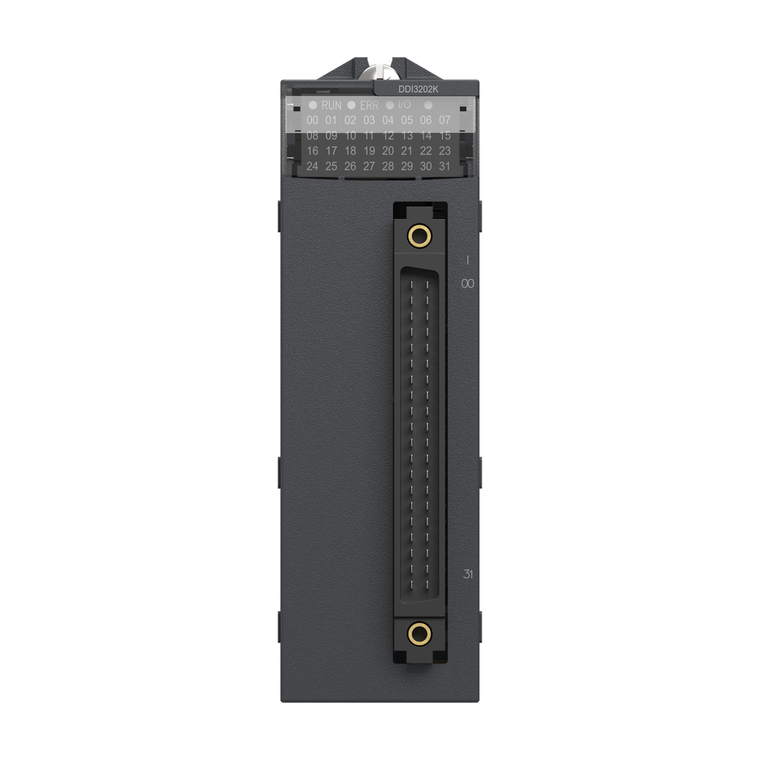

This discrete input module is part of the Modicon X80 modules. It has 32 isolated inputs and it is supplied with 24V DC. this input module with 40-way connectors is designed, for use in conjunction with the TeSys Quickfit mounting system. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
- Discrete Input Current:
- 2.5 mA
- Rohs Exemption Information:
- Yes
- Operating Altitude:
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Discrete Input Voltage:
- 24 V DC positive
- Discrete Input Type:
- isolated
- China Rohs Regulation:
- X
- Warranty:
- 18 months
- Voltage Detection Threshold:
- < 14 V DC sensor fault || > 18 V DC sensor OK
- Status Led:
- 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
- Input Type:
- current sink (logic positive)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Paralleling Of Inputs:
- no
- Net Weight:
- 0.112 kg
- Voltage Range:
- 19...30 V
- Ambient Air Temperature For Storage:
- -40-85 °C
- Input Impedance:
- 9600 Ohm
- Power Dissipation In W:
- 3.9 W
- Directives:
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Product Or Component Type:
- discrete input module
- Dc Typical Filtering Time:
- 4 ms
- Current State 1 Guaranteed:
- >= 2 mA
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP20
- Dielectric Strength:
- 1500 V AC 50/60 Hz 1 minute, primary/secondary || 500 V DC 1 minute, between group of channels
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Input Compatibility:
- with 2-wire/3-wire proximity sensors IEC 60947-5-2 || with 2-wire/3-wire proximity sensors IEC 61131-2 Type 1
- Shock Resistance:
- 30 gn
- Dc Maximum Filtering Time:
- 7 ms
- Range Of Product:
- Modicon X80
- Insulation Resistance:
- > 10 MOhm 500 V DC
- Mtbf Reliability:
- 905000 H
- Typical Current Consumption:
- 121 mA 3.3 V DC
- Current State 0 Guaranteed:
- <= 0.5 mA
- Ambient Air Temperature For Operation:
- 0-60 °C
- Protection Type:
- 1 external fuse per group of channel 0.5 A fast blow || reverse polarity protection
- Mercury Free:
- Yes
- Discrete Input Number:
- 32
- Relative Humidity:
- 5-95 % 55-55 °C without condensation
- Vibration Resistance:
- 3 gn
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
