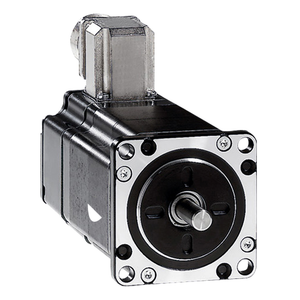

Schneider Electric BRS366H030ABA Vrdm366/50Lhb Ooip41 Oo D6O 38 Ooooooo
3-phase stepper motor - 1.02Nm - shaft Ø6.35mm -L=56mm - without brake -term box
- Warranty:
- 18 months
- Circle Diameter Of The Mounting Holes:
- 66.6 mm
- Service Life In Hours:
- 20000 h bearing)
- Temperature Class:
- F winding IEC 60034-1
- Device Short Name:
- BRS3
- Motor Type:
- 3-phase stepper motor
- Standards:
- IEC 60072-1 || IEC 50347
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mounting Holes Diameter:
- 5.2 mm
- Circularity Profile:
- N/A
- Resistance:
- 0.5 Ohm winding)
- Motor Flange Size:
- 57.2 mm
- Line Rated Current:
- 5.8 A
- Time Constant:
- 3.3 ms
- Vibration Resistance:
- 20 m/s² maximum || A IEC 60034-14
- Centring Collar Depth:
- 1.6 mm
- Electrical Connection:
- terminal box
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- total except shaft bushing IP56 IEC 60034-5 || shaft bushing without shaft seal ring IP41 IEC 60034-5
- Length:
- 93 mm
- Sustainable Offer Status:
- Green Premium product
- Operating Altitude:
- <= 3280.84 ft (1000 m) without power derating
- Holding Brake:
- without
- Maximum Starting Frequency:
- 8 kHz
- Second Shaft:
- without second shaft end
- Mounting Support:
- flange
- Relative Humidity:
- 15-85 % without condensation
- Range Compatibility:
- Lexium SD3
- Shaft Diameter:
- 6.35 mm
- Rohs Exemption Information:
- Yes
- Rotor Inertia:
- 0.22 kg.cm²
- Centring Collar Diameter:
- 38 mm
- Ambient Air Temperature For Operation:
- -25-40 °C
- Ambient Air Temperature For Storage:
- -25-70 °C
- Product Or Component Type:
- motion control motor
- Nominal Torque:
- 0.9 N.m
- Shaft End:
- smooth shaft
- Resolution:
- 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution
- Mercury Free:
- Yes
- Maximum Axial Force Fa:
- 100 N tensile force) || 8.4 N force pressure)
- Number Of Motor Poles:
- 6
- Pvc Free:
- Yes
- Holding Torque:
- 1.02 N.m
- Environmental Disclosure:
- ENVPEP111101EN
- Type Of Cooling:
- natural convection
- Number Of Mounting Holes:
- 4
- Maximum Radial Force Fr:
- 25 N second shaft end) || 24 N first shaft end)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Angular Acceleration:
- 200000 rad/s²
- Maximum Mechanical Speed:
- 3000 rpm
- Shaft Length:
- 21 mm
- China Rohs Regulation:
- X
- Accuracy Error:
- +/- 6 arc min
- Supply Voltage Limits:
- 34-34 V DC || 48-48 V DC
- Net Weight:
- 1.6 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
