Schneider Electric

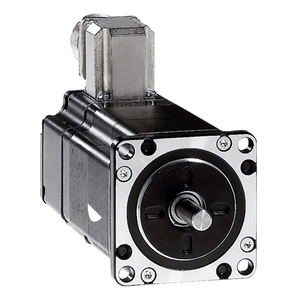

Schneider Electric BRS366H030ACA Vrdm366/50Lhc Ooip41 Oo D6O 38 Obooooo

SKU:

BRS366H030ACA

UPC:

3.60649E+12

MPN:

Condition:

New

Relative Humidity:

15-85 % without condensation

Electrical Connection:

connector

Circle Diameter Of The Mounting Holes:

66.6 mm

Net Weight:

1.6 kg

Length:

93 mm

Second Shaft:

without second shaft end

Maximum Starting Frequency:

8 kHz

Holding Brake:

without

Ambient Air Temperature For Storage:

-25-70 °C

Product Or Component Type:

motion control motor

Motor Type:

3-phase stepper motor

Number Of Motor Poles:

6

Ip Degree Of Protection:

total except shaft bushing IP56 IEC 60034-5 || shaft bushing without shaft seal ring IP41 IEC 60034-5

Temperature Class:

F winding IEC 60034-1

Type Of Cooling:

natural convection

Line Rated Current:

5.8 A

Accuracy Error:

+/- 6 arc min

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Shaft Length:

21 mm

Motor Flange Size:

57.2 mm

Device Short Name:

BRS3

Holding Torque:

1.02 N.m

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pvc Free:

Yes

Mounting Support:

flange

Maximum Axial Force Fa:

100 N tensile force) || 8.4 N force pressure)

Number Of Mounting Holes:

4

Range Compatibility:

Lexium SD3

Maximum Radial Force Fr:

25 N second shaft end) || 24 N first shaft end)

Sustainable Offer Status:

Green Premium product

Nominal Torque:

0.9 N.m

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Maximum Mechanical Speed:

3000 rpm

Centring Collar Diameter:

38 mm

Centring Collar Depth:

1.6 mm

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Standards:

IEC 60072-1 || IEC 50347

Shaft Diameter:

6.35 mm

Time Constant:

3.3 ms

Environmental Disclosure:

ENVPEP111101EN

Resistance:

0.5 Ohm winding)

Ambient Air Temperature For Operation:

-25-40 °C

Warranty:

18 months

Rotor Inertia:

0.22 kg.cm²

Supply Voltage Limits:

34-34 V DC || 48-48 V DC

Service Life In Hours:

20000 h bearing)

Shaft End:

smooth shaft

Mounting Holes Diameter:

5.2 mm

Circularity Profile:

N/A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Angular Acceleration:

200000 rad/s²
