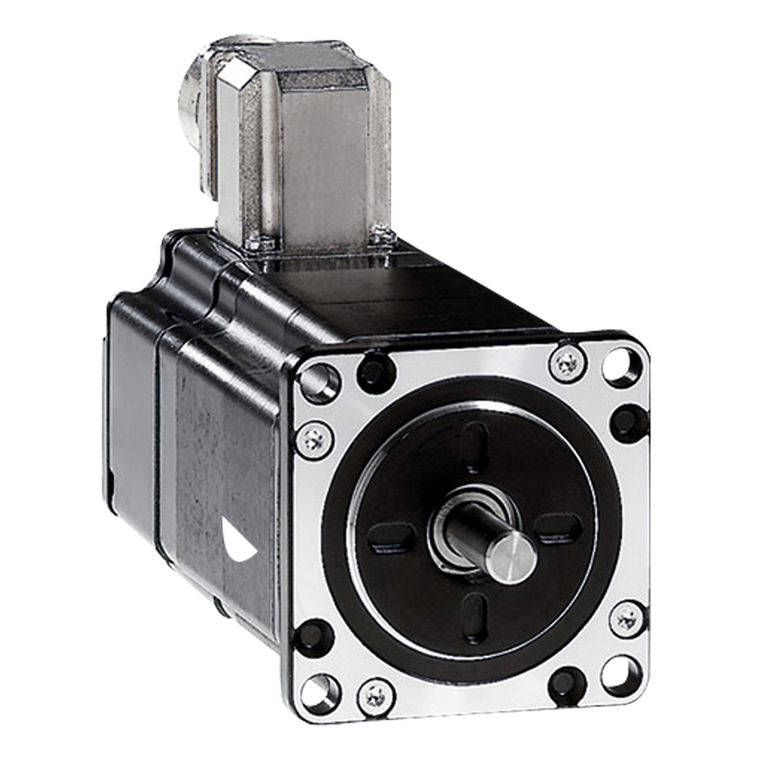

Schneider Electric BRS368W130ABA Lexium Stepper Motor, Size 60, 1.7 Nm, 3

(No reviews yet) Write a Review

Write a Review

Schneider Electric BRS368W130ABA Lexium Stepper Motor, Size 60, 1.7 Nm, 3

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BRS368W130ABA

UPC:

3389119223492

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Maximum Mechanical Speed:

3000 rpm

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP56 IEC 60034-5

Pvc Free:

Yes

Number Of Motor Poles:

6

Temperature Class:

F winding IEC 60034-1

Shaft End:

smooth shaft

Rotor Inertia:

0.38 kg.cm²

Shaft Diameter:

8 mm

Line Rated Current:

0.9 A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Second Shaft:

without second shaft end

Relative Humidity:

15-85 % without condensation

Maximum Starting Frequency:

8.5 kHz

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-25-70 °C

Holding Brake:

without

Maximum Axial Force Fa:

100 N tensile force) || 8.4 N force pressure)

China Rohs Regulation:

X

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

Circularity Profile:

N/A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Connection:

terminal box

Centring Collar Diameter:

38 mm

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Service Life In Hours:

20000 h bearing)

Net Weight:

2 kg

Range Compatibility:

Lexium SD3

Environmental Disclosure:

ENVPEP111101EN

Holding Torque:

1.7 N.m

Standards:

IEC 50347 || IEC 60072-1

Ambient Air Temperature For Operation:

-25-40 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Sustainable Offer Status:

Green Premium product

Nominal Torque:

1.5 N.m

Device Short Name:

BRS3

Warranty:

18 months

Peak Stall Torque:

1.53 N.m

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Maximum Radial Force Fr:

25 N second shaft end) || 50 N first shaft end)

Mounting Support:

flange

Centring Collar Depth:

1.6 mm

Continuous Stall Torque:

1.53 N.m

Type Of Cooling:

natural convection

Time Constant:

4.6 ms

Accuracy Error:

+/- 6 arc min

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Length:

116 mm

Product Or Component Type:

motion control motor

Mounting Holes Diameter:

5.2 mm

Angular Acceleration:

200000 rad/s²

Resistance:

25 Ohm winding)

Motor Type:

3-phase stepper motor

Number Of Mounting Holes:

4

Shaft Length:

21 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circle Diameter Of The Mounting Holes:

66.6 mm

Motor Flange Size:

57.2 mm
