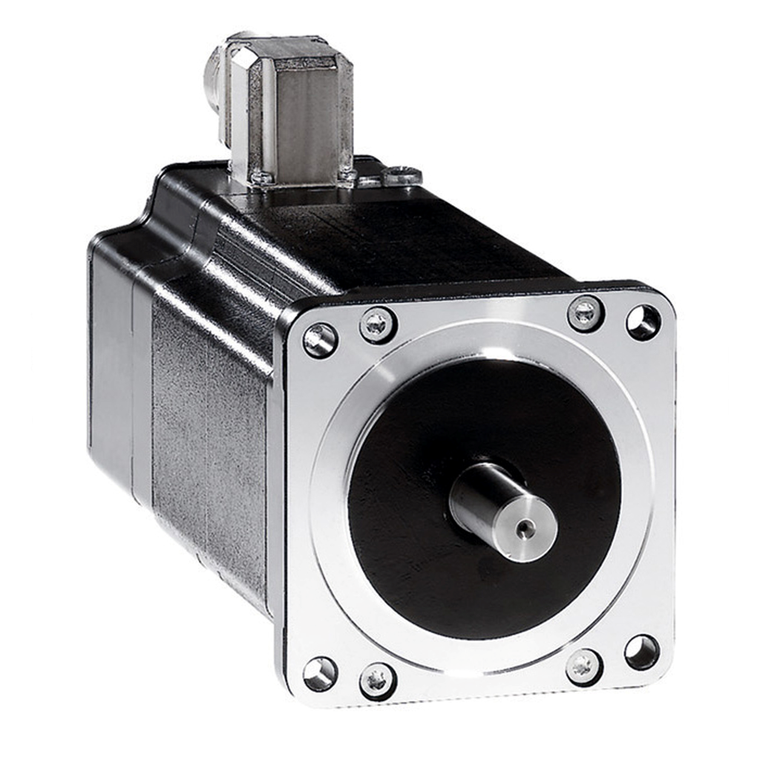

Schneider Electric BRS397W360FBA Lexium Stepper Motor, Size 90, 2.26 Nm,

SKU:

BRS397W360FBA

UPC:

3389119223645

MPN:

Condition:

New

Mounting Holes Diameter:

6.5 mm

Type Of Cooling:

natural convection

Warranty:

18 months

Temperature Class:

F winding IEC 60034-1

Sustainable Offer Status:

Green Premium product

Shaft Diameter:

12 mm

Centring Collar Depth:

2 mm

Mercury Free:

Yes

Shaft Length:

30 mm

Ambient Air Temperature For Storage:

-25-70 °C

Rotor Inertia:

1.1 kg.cm²

Maximum Axial Force Fa:

175 N tensile force) || 30 N force pressure)

Maximum Mechanical Speed:

3000 rpm

Holding Brake:

with

Motor Flange Size:

85 mm

Holding Torque:

2.26 N.m

Circularity Profile:

N/A

Continuous Stall Torque:

1.9 N.m

Motor Type:

3-phase stepper motor

Accuracy Error:

+/- 6 arc min

Device Short Name:

BRS3

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Mounting Support:

flange

Shaft End:

untapped

Pvc Free:

Yes

Circle Diameter Of The Mounting Holes:

98.99 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Centring Collar Diameter:

60 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Operation:

-25-40 °C

Second Shaft:

without second shaft end

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Range Compatibility:

Lexium SD3

Environmental Disclosure:

ENVPEP111101EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP56 IEC 60034-5

Number Of Mounting Holes:

4

Product Or Component Type:

motion control motor

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

Service Life In Hours:

20000 h bearing)

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Net Weight:

2.1 kg

Angular Acceleration:

200000 rad/s²

Standards:

IEC 60072-1 || IEC 50347

Length:

157 mm

Maximum Radial Force Fr:

100 N first shaft end) || 50 N second shaft end)

Time Constant:

7 ms

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Relative Humidity:

15-85 % without condensation

Number Of Motor Poles:

6

Resistance:

6.5 Ohm winding)

Nominal Torque:

2 N.m

Line Rated Current:

1.75 A

Electrical Connection:

terminal box

Peak Stall Torque:

1.9 N.m

Maximum Starting Frequency:

5.3 kHz

Catalog:

View

Datasheet:

View
