Schneider Electric

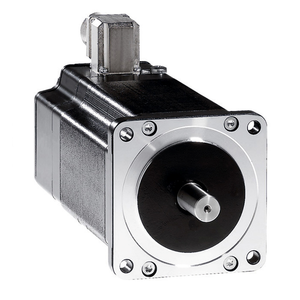

Schneider Electric BRS39AH360AAA Vrdm3910/50Lha Ooip41 Oo D2O 60 Ooos400

SKU:

BRS39AH360AAA

UPC:

3606485150321

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ip Degree Of Protection:

total except shaft bushing IP56 IEC 60034-5 || shaft bushing without shaft seal ring IP41 IEC 60034-5

Holding Brake:

without

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Motor Type:

3-phase stepper motor

Electrical Connection:

wires

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Motor Flange Size:

85 mm

Centring Collar Diameter:

60 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Circle Diameter Of The Mounting Holes:

98.99 mm

Warranty:

18 months

Angular Acceleration:

200000 rad/s²

Relative Humidity:

15-85 % without condensation

Shaft End:

smooth shaft

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Number Of Mounting Holes:

4

Rotor Inertia:

2.2 kg.cm²

Ambient Air Temperature For Storage:

-25-70 °C

Sustainable Offer Status:

Green Premium product

Type Of Cooling:

natural convection

Shaft Diameter:

12 mm

Mounting Holes Diameter:

6.5 mm

Second Shaft:

without second shaft end

Circularity Profile:

N/A

Mounting Support:

flange

Holding Torque:

4.8 N.m

Resistance:

0.55 Ohm winding)

Supply Voltage Limits:

34-34 V AC || 48-48 V DC

Rohs Exemption Information:

Yes

Net Weight:

3.2 kg

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Ambient Air Temperature For Operation:

-25-40 °C

Product Or Component Type:

motion control motor

Maximum Mechanical Speed:

3000 rpm

Maximum Starting Frequency:

5.3 kHz

Nominal Torque:

4 N.m

Accuracy Error:

+/- 6 arc min

Shaft Length:

30 mm

Maximum Axial Force Fa:

175 N tensile force) || 30 N force pressure)

Length:

98 mm

Number Of Motor Poles:

6

Time Constant:

9 ms

Maximum Radial Force Fr:

110 N first shaft end) || 75 N second shaft end)

Pvc Free:

Yes

Service Life In Hours:

20000 h bearing)

Centring Collar Depth:

2 mm

Device Short Name:

BRS3

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Line Rated Current:

5.8 A

Temperature Class:

F winding IEC 60034-1

Standards:

IEC 60072-1 || IEC 50347

Range Compatibility:

Lexium SD3

Environmental Disclosure:

ENVPEP111101EN
