Schneider Electric

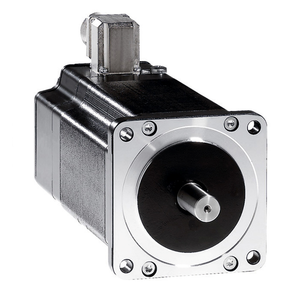

Schneider Electric BRS39AH360ABA Vrdm3910/50Lhb Ooip41 Oo D2O 60 Ooooooo

SKU:

BRS39AH360ABA

UPC:

3.60649E+12

MPN:

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mercury Free:

Yes

Type Of Cooling:

natural convection

China Rohs Regulation:

X

Nominal Torque:

4 N.m

Service Life In Hours:

20000 h bearing)

Length:

141 mm

Holding Torque:

4.8 N.m

Time Constant:

9 ms

Warranty:

18 months

Standards:

IEC 50347 || IEC 60072-1

Centring Collar Depth:

2 mm

Ambient Air Temperature For Storage:

-25-70 °C

Maximum Radial Force Fr:

110 N first shaft end) || 50 N second shaft end)

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Shaft End:

smooth shaft

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Holding Brake:

without

Second Shaft:

without second shaft end

Line Rated Current:

5.8 A

Resistance:

0.55 Ohm winding)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circle Diameter Of The Mounting Holes:

98.99 mm

Pvc Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Starting Frequency:

5.3 kHz

Mounting Support:

flange

Motor Flange Size:

85 mm

Temperature Class:

F winding IEC 60034-1

Device Short Name:

BRS3

Motor Type:

3-phase stepper motor

Number Of Mounting Holes:

4

Sustainable Offer Status:

Green Premium product

Maximum Mechanical Speed:

3000 rpm

Shaft Diameter:

12 mm

Shaft Length:

30 mm

Range Compatibility:

Lexium SD3

Maximum Axial Force Fa:

175 N tensile force) || 30 N force pressure)

Mounting Holes Diameter:

6.5 mm

Circularity Profile:

N/A

Ambient Air Temperature For Operation:

-25-40 °C

Electrical Connection:

terminal box

Angular Acceleration:

200000 rad/s²

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Accuracy Error:

+/- 6 arc min

Rotor Inertia:

2.2 kg.cm²

Relative Humidity:

15-85 % without condensation

Supply Voltage Limits:

34-34 V AC || 48-48 V DC

Ip Degree Of Protection:

total except shaft bushing IP56 IEC 60034-5 || shaft bushing without shaft seal ring IP41 IEC 60034-5

Product Or Component Type:

motion control motor

Net Weight:

3.2 kg

Number Of Motor Poles:

6

Environmental Disclosure:

ENVPEP111101EN

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Centring Collar Diameter:

60 mm

Rohs Exemption Information:

Yes
