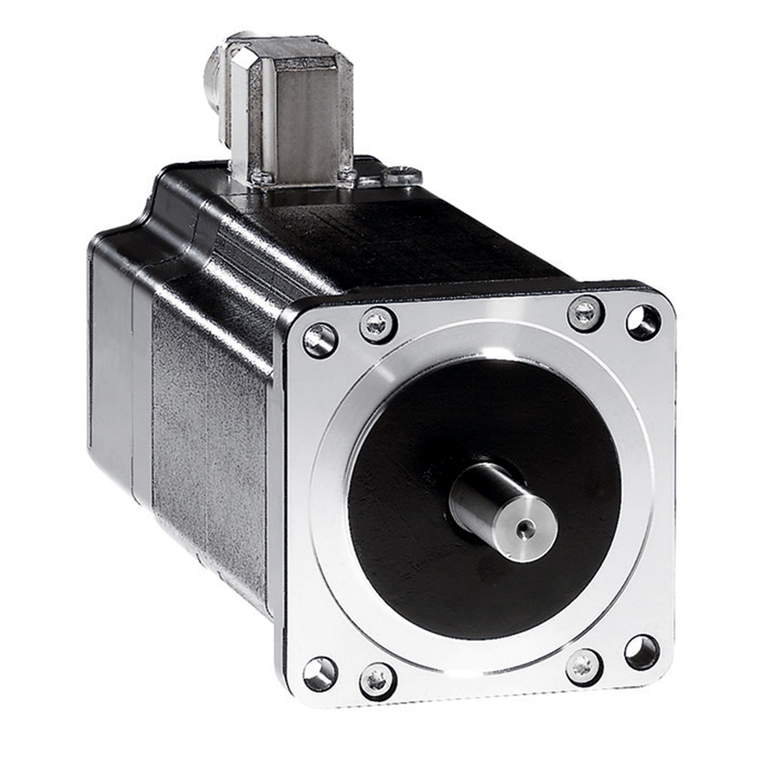

Schneider Electric BRS39AW660ACA Lexium Stepper Motor, Size 90, 4.52 Nm,

(No reviews yet) Write a Review

Write a Review

Schneider Electric BRS39AW660ACA Lexium Stepper Motor, Size 90, 4.52 Nm,

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BRS39AW660ACA

UPC:

3389119223874

MPN:

Condition:

New

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Operation:

-25-40 °C

Centring Collar Depth:

2 mm

Holding Torque:

4.8 N.m

Accuracy Error:

+/- 6 arc min

Number Of Motor Poles:

6

Range Compatibility:

Lexium SD3

Standards:

IEC 60072-1 || IEC 50347

Motor Type:

3-phase stepper motor

Ip Degree Of Protection:

total except shaft bushing IP56 IEC 60034-5 || shaft bushing without shaft seal ring IP41 IEC 60034-5

Shaft Diameter:

12 mm

Environmental Disclosure:

ENVPEP111101EN

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Starting Frequency:

5.3 kHz

Angular Acceleration:

200000 rad/s²

Maximum Radial Force Fr:

110 N first shaft end) || 50 N second shaft end)

Relative Humidity:

15-85 % without condensation

Mercury Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Product Or Component Type:

motion control motor

Mounting Support:

flange

Circle Diameter Of The Mounting Holes:

98.99 mm

Holding Brake:

without

Time Constant:

9 ms

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rotor Inertia:

2.2 kg.cm²

Maximum Mechanical Speed:

3000 rpm

Second Shaft:

without second shaft end

Ambient Air Temperature For Storage:

-25-70 °C

Maximum Axial Force Fa:

175 N tensile force) || 30 N force pressure)

Number Of Mounting Holes:

4

Centring Collar Diameter:

60 mm

Rohs Exemption Information:

Yes

Nominal Torque:

4 N.m

Mounting Holes Diameter:

6.5 mm

Device Short Name:

BRS3

Warranty:

18 months

Type Of Cooling:

natural convection

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Electrical Connection:

connector

Motor Flange Size:

85 mm

Shaft Length:

30 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

Temperature Class:

F winding IEC 60034-1

Net Weight:

3.2 kg

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Service Life In Hours:

20000 h bearing)

Line Rated Current:

5.8 A

Shaft End:

woodruff key

Circularity Profile:

N/A

Length:

141 mm

Pvc Free:

Yes

Resistance:

0.55 Ohm winding)
