Schneider Electric

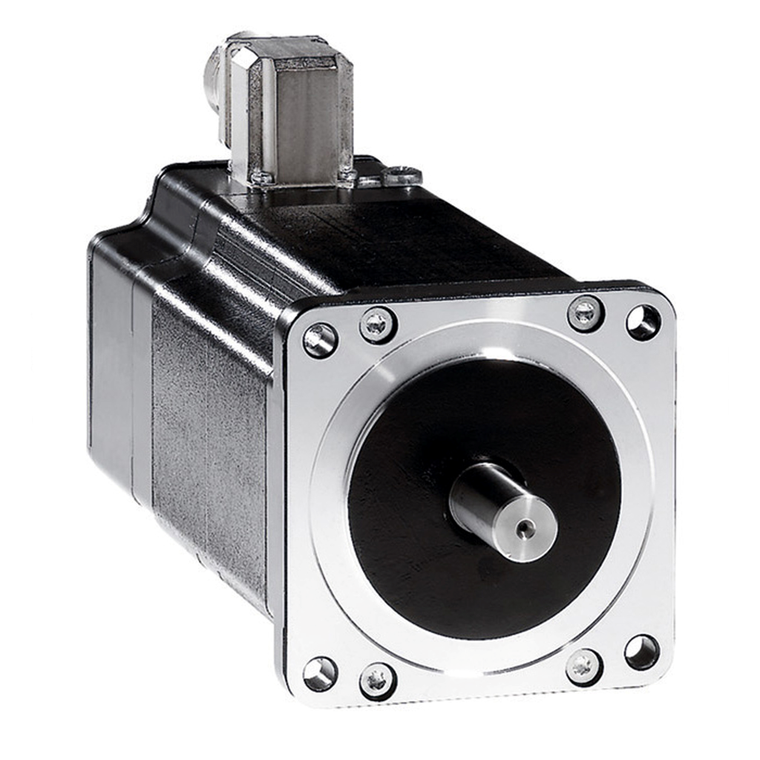

Schneider Electric BRS39BW761ACB Vrdm3913/50Lwc Eoip41 Oo D4K 60 2Bboooo

SKU:

BRS39BW761ACB

UPC:

3606485152080

MPN:

Condition:

New

Centring Collar Depth:

2 mm

Accuracy Error:

+/- 6 arc min

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Feedback Type:

single turn encoder

Angular Acceleration:

200000 rad/s²

Resolution:

1000 points/turn || 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Number Of Mounting Holes:

4

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Range Compatibility:

Lexium SD3

Product Or Component Type:

motion control motor

Circularity Profile:

N/A

Circle Diameter Of The Mounting Holes:

98.99 mm

Device Short Name:

BRS3

Motor Type:

3-phase stepper motor

Service Life In Hours:

20000 h bearing)

Type Of Cooling:

natural convection

Length:

171 mm

Time Constant:

10 ms

Holding Brake:

without

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

Electrical Connection:

connector

Relative Humidity:

15-85 % without condensation

Holding Torque:

6.78 N.m

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Radial Force Fr:

110 N first shaft end) || 50 N second shaft end)

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP56 IEC 60034-5

Shaft Diameter:

14 mm

Resistance:

6.5 Ohm winding)

Continuous Stall Torque:

5.78 N.m

Environmental Disclosure:

ENVPEP111101EN

Shaft End:

woodruff key

Rotor Inertia:

3.3 kg.cm²

Maximum Starting Frequency:

5.3 kHz

Net Weight:

4.3 kg

Speed Feedback Resolution:

10000 points/turn

Sustainable Offer Status:

Green Premium product

Temperature Class:

F winding IEC 60034-1

Mercury Free:

Yes

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Support:

flange

Nominal Torque:

6 N.m

Mounting Holes Diameter:

6.5 mm

Second Shaft:

with second shaft end

Ambient Air Temperature For Storage:

-25-70 °C

Line Rated Current:

2.25 A

Shaft Length:

30 mm

Ambient Air Temperature For Operation:

-25-40 °C

Standards:

IEC 50347 || IEC 60072-1

Number Of Motor Poles:

6

Motor Flange Size:

85 mm

Centring Collar Diameter:

60 mm

Rohs Exemption Information:

Yes

Peak Stall Torque:

5.78 N.m

Warranty:

18 months

Maximum Axial Force Fa:

175 N tensile force) || 30 N force pressure)

Maximum Mechanical Speed:

3000 rpm
