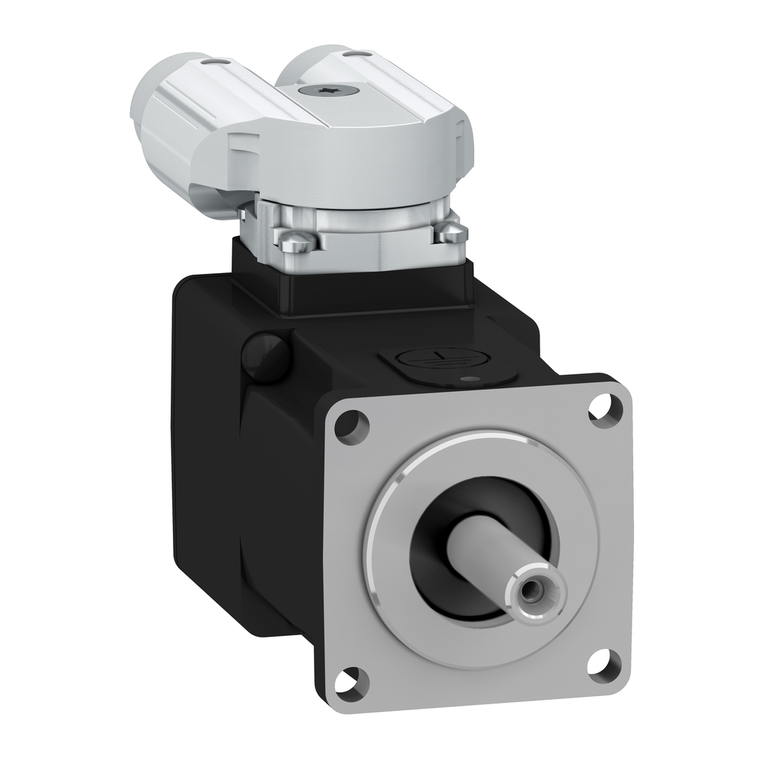

Schneider Electric BSH0401P07A2A Motor 40Mm Iec 0,18Nm 170W Ip50 No Key S
SKU:
BSH0401P07A2A
UPC:
3606485467122
MPN:
Condition:
New
Shaft End:
smooth shaft
Maximum Current Irms:
4.7 A LXM32.U60N4 480 V || 4.7 A LXM32.U60N4 400 V || 4.7 A LXM32.U45M2 230 V
Continuous Power:
220 W
Pvc Free:
Yes
Shaft Length:
25 mm
Rotor Inertia:
0.0232 kg.cm²
Nominal Speed:
9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
Stator Inductance:
14.6 mH 20 °C
Centring Collar Depth:
2.5 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
[Us] Rated Supply Voltage:
400 V
Mounting Holes Diameter:
4.5 mm
Nominal Torque:
0.176 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.176 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.184 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Device Short Name:
BSH
Switching Frequency:
8 kHz
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ip Degree Of Protection:
IP50 standard
Rohs Exemption Information:
Yes
Number Of Motor Stacks:
1
Electrical Connection:
rotatable right-angled connectors
Nominal Output Power:
166 W LXM32.U60N4 1.5 A, 480 V, three phase || 166 W LXM32.U60N4 1.5 A, 400 V, three phase || 77 W LXM32.U45M2 1.5 A, 230 V, single phase
Maximum Permanent Current:
1.12 A
Number Of Mounting Holes:
4
Maximum Axial Force Fa:
0.2 x Fr
Feedback Type:
multiturn SinCos Hiperface
Motor Flange Size:
40 mm
Stator Resistance:
17.2 Ohm 20 °C
Circle Diameter Of The Mounting Holes:
46 mm
Net Weight:
0.4 kg
Range Compatibility:
Lexium 32
Circularity Profile:
N/A
Mercury Free:
Yes
Shaft Diameter:
8 mm
Number Of Motor Poles:
10
Environmental Disclosure:
ENVPEP111049EN
Length:
73.4 mm
Phase:
three phase
Mounting Support:
international standard flange
Torque Constant:
0.19 N.m/A 120 °C
Maximum Mechanical Speed:
10000 rpm
Centring Collar Diameter:
30 mm
China Rohs Regulation:
X
Back Emf Constant:
13.6 V/krpm 20 °C
Continuous Stall Torque:
0.21 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.21 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.21 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Speed Feedback Resolution:
32768 points/turn x 4096 turns
Continuous Stall Current:
1.12 A
Second Shaft:
without second shaft end
Stator Electrical Time Constant:
0.85 ms 20 °C
Holding Brake:
without
Product Or Component Type:
servo motor
Type Of Cooling:
natural convection
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Peak Stall Torque:
0.8 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.8 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.8 N.m LXM32.U45M2 1.5 A, 230 V, single phase
