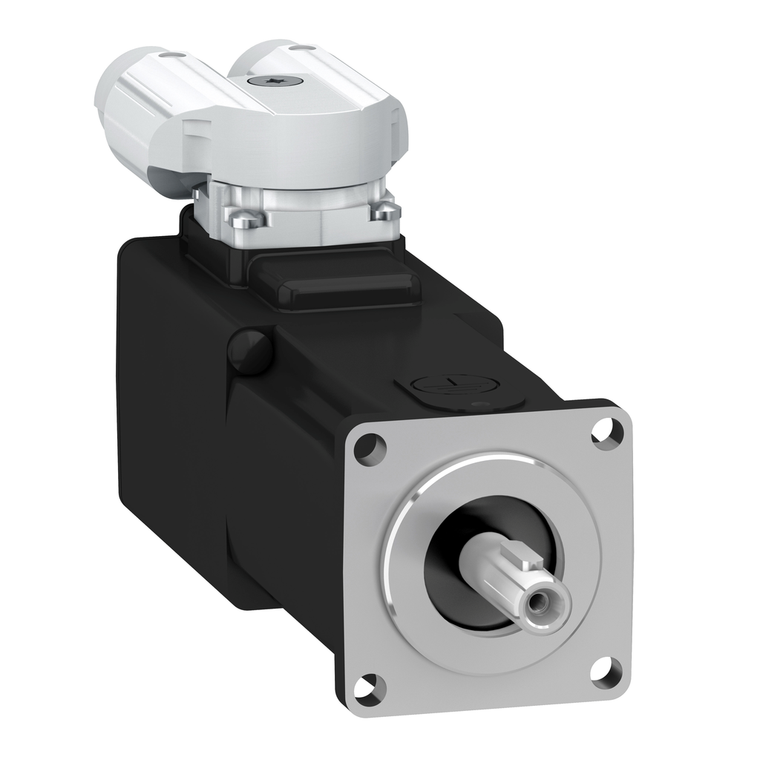

Schneider Electric BSH0402P17F2A Motor 40Mm Iec 0,34Nm 320W Ip50 Key Shaf

(No reviews yet) Write a Review

Write a Review

Schneider Electric BSH0402P17F2A Motor 40Mm Iec 0,34Nm 320W Ip50 Key Shaf

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BSH0402P17F2A

UPC:

3606485467351

MPN:

Condition:

New

Mounting Support:

international standard flange

Shaft Diameter:

8 mm

Circle Diameter Of The Mounting Holes:

46 mm

Second Shaft:

without second shaft end

Continuous Stall Torque:

0.38 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.38 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.38 N.m LXM32.U45M2 1.5 A, 230 V, single phase

Number Of Motor Poles:

10

Centring Collar Diameter:

30 mm

Nominal Torque:

0.292 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 0.307 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 0.364 N.m LXM32.U45M2 1.5 A, 230 V, single phase

Shaft Length:

25 mm

Peak Stall Torque:

1.37 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.37 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.37 N.m LXM32.U45M2 1.5 A, 230 V, single phase

China Rohs Regulation:

X

Length:

119.4 mm

Stator Resistance:

11.6 Ohm 20 °C

Key Width:

12 mm

Maximum Mechanical Speed:

10000 rpm

Rotor Inertia:

0.0588 kg.cm²

Phase:

three phase

Speed Feedback Resolution:

32768 points/turn x 4096 turns

Device Short Name:

BSH

Electrical Connection:

rotatable right-angled connectors

Shaft End:

keyed

Feedback Type:

multiturn SinCos Hiperface

Circularity Profile:

N/A

Product Or Component Type:

servo motor

[Us] Rated Supply Voltage:

400 V

Nominal Speed:

9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase

Motor Flange Size:

40 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Switching Frequency:

8 kHz

Type Of Cooling:

natural convection

Net Weight:

0.8 kg

Mercury Free:

Yes

Maximum Permanent Current:

1.5 A

Environmental Disclosure:

ENVPEP111049EN

Continuous Power:

398 W

Holding Brake:

with

Brake Pull-In Power:

5.8 W

Ip Degree Of Protection:

IP50 standard

Range Compatibility:

Lexium 32

Pvc Free:

Yes

Sustainable Offer Status:

Green Premium product

Stator Electrical Time Constant:

1.1 ms 20 °C

Back Emf Constant:

18 V/krpm 20 °C

Stator Inductance:

12.8 mH 20 °C

Rohs Exemption Information:

Yes

Nominal Output Power:

275 W LXM32.U60N4 1.5 A, 480 V, three phase || 289 W LXM32.U60N4 1.5 A, 400 V, three phase || 152 W LXM32.U45M2 1.5 A, 230 V, single phase

Maximum Axial Force Fa:

0.2 x Fr

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Continuous Stall Current:

1.5 A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Motor Stacks:

2

Torque Constant:

0.253 N.m/A 120 °C

Holding Torque:

0.4 N.m holding brake

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Mounting Holes:

4

Mounting Holes Diameter:

4.5 mm

Maximum Current Irms:

6 A LXM32.U60N4 480 V || 6 A LXM32.U60N4 400 V || 6 A LXM32.U45M2 230 V

Centring Collar Depth:

2.5 mm
