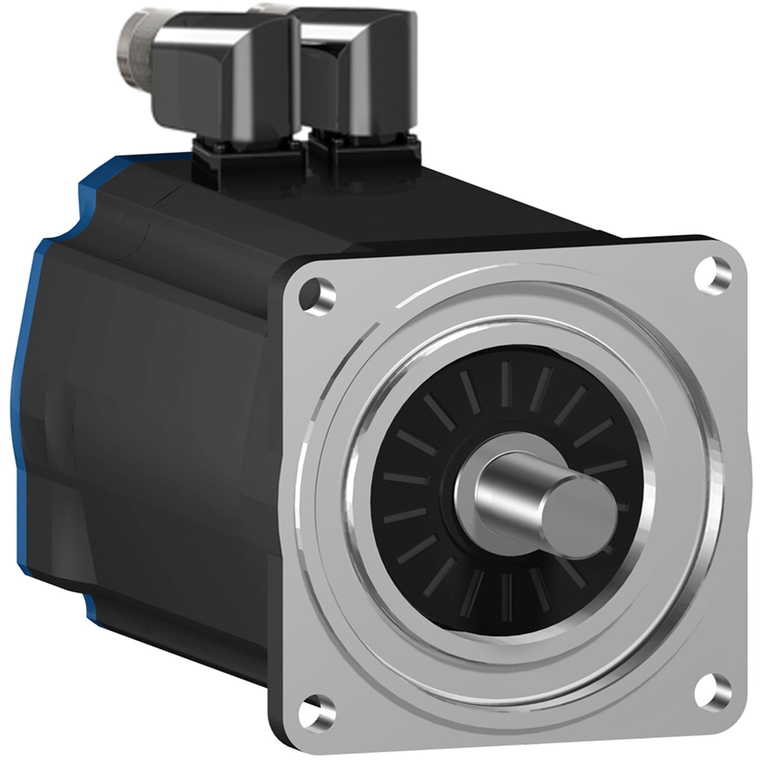

Schneider Electric BSH1001T21A2A Bsh Motor Iec 100Mm 3,4 Nmwo Key Ip65 Si
SKU:
BSH1001T21A2A
UPC:
3389118138704
MPN:
Condition:
New
Feedback Type:
single turn SinCos Hiperface
Continuous Stall Torque:
3.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 3.4 N.m LXM05CD28M2, 200...240 V, single phase || 3.4 N.m LXM05CD42M3X, 200...240 V, three phase || 2.7 N.m LXM32.D18M2 6 A, 230 V, single phase || 3.39 N.m LXM15LD28M3, 230 V, three phase || 3.4 N.m L
Maximum Axial Force Fa:
0.2 x Fr
Stator Resistance:
0.87 Ohm 20 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shaft Length:
40 mm
Maximum Current Irms:
18 A LXM32.D18M2 230 V || 25.1 A LXM05CD28F1 || 25.1 A LXM05CD28M2 || 25.1 A LXM05CD42M3X || 15 A LXM32.D30M2 115 V || 23 A LXM15LD28M3 || 25.1 A LXM05AD28F1 || 25.1 A LXM05AD28M2 || 25.1 A LXM05AD42M3X || 25.1 A LXM05BD28F1 || 25.1 A LXM05BD28M2 ||
Peak Stall Torque:
6.3 N.m LXM32.D30M2 10 A, 115 V, single phase || 8.5 N.m LXM05AD42M3X, 200...240 V, three phase || 8.5 N.m LXM05BD42M3X, 200...240 V, three phase || 8.5 N.m LXM05CD42M3X, 200...240 V, three phase || 8.5 N.m LXM05AD28F1, 110...120 V, single phase || 8
Type Of Cooling:
natural convection
[Us] Rated Supply Voltage:
480 V
Shaft Diameter:
19 mm
Rotor Inertia:
1.4 kg.cm²
Phase:
three phase
Stator Electrical Time Constant:
4.6 ms 20 °C
Environmental Disclosure:
ENVPEP111049EN
Circle Diameter Of The Mounting Holes:
115 mm
Continuous Stall Current:
7.3 A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Centring Collar Diameter:
95 mm
Continuous Power:
1.6 W
Number Of Mounting Holes:
4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Centring Collar Depth:
3.5 mm
Nominal Output Power:
700 W LXM32.D30M2 10 A, 115 V, single phase || 900 W LXM05AD42M3X, 200...240 V, three phase || 900 W LXM05BD42M3X, 200...240 V, three phase || 900 W LXM05CD42M3X, 200...240 V, three phase || 900 W LXM32.D18M2 6 A, 230 V, single phase || 500 W LXM05AD
Holding Brake:
without
Mounting Support:
international standard flange
Rohs Exemption Information:
Yes
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Speed Feedback Resolution:
131072 points/turn
Maximum Permanent Current:
25.1 A
Switching Frequency:
8 kHz
Number Of Motor Poles:
8
Electrical Connection:
rotatable right-angled connectors
Maximum Mechanical Speed:
6000 rpm
Pvc Free:
Yes
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Shaft End:
untapped
Maximum Radial Force Fr:
530 N 5000 rpm || 570 N 4000 rpm || 630 N 3000 rpm || 720 N 2000 rpm || 900 N 1000 rpm
Stator Inductance:
4 mH 20 °C
Nominal Speed:
2500 rpm LXM32.D30M2 10 A, 115 V, single phase || 1500 rpm LXM05BD28F1, 110...120 V, single phase || 1500 rpm LXM05CD28F1, 110...120 V, single phase || 4000 rpm LXM15LD28M3, 230 V, three phase || 3000 rpm LXM05AD28M2, 200...240 V, single phase || 300
Number Of Motor Stacks:
1
Second Shaft:
without second shaft end
Product Compatibility:
LXM05AD28F1 110...120 V single phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM15LD28M3 230 V three phase || LXM05AD28M2 200...240 V single phase || LXM05BD28F1 110...120 V single phase || LXM05BD28M2 200..
Torque Constant:
0.45 N.m/A 120 °C
Warranty:
18 months
Circularity Profile:
N/A
Mounting Holes Diameter:
9 mm
Product Or Component Type:
servo motor
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Back Emf Constant:
29 V/krpm 120 °C
Motor Flange Size:
100 mm
Mercury Free:
Yes
Nominal Torque:
2.75 N.m LXM32.D30M2 10 A, 115 V, single phase || 2.9 N.m LXM05AD42M3X, 200...240 V, three phase || 2.9 N.m LXM05BD42M3X, 200...240 V, three phase || 2.9 N.m LXM05CD42M3X, 200...240 V, three phase || 2.9 N.m LXM05AD28M2, 200...240 V, single phase ||
