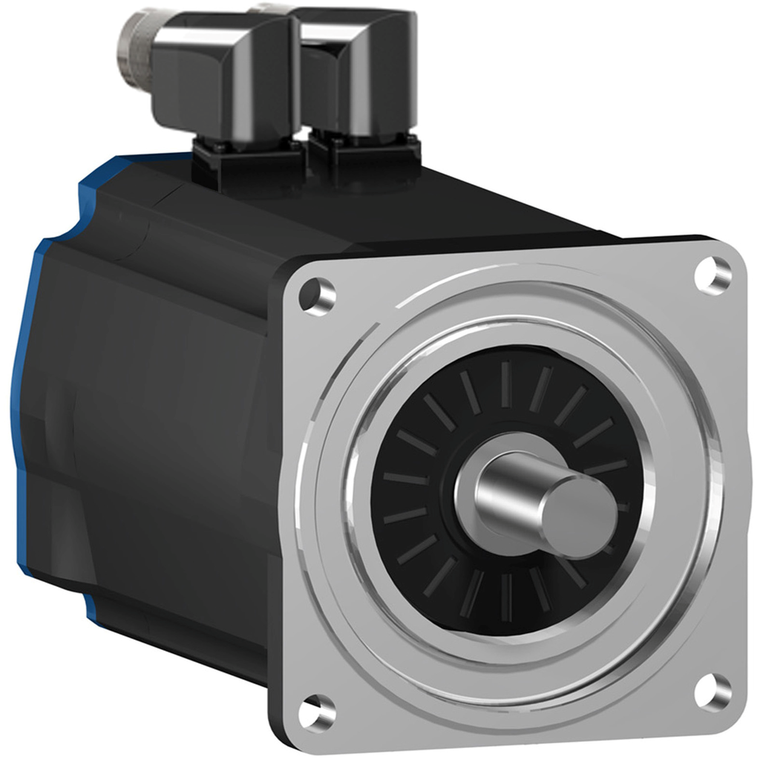

Schneider Electric BSH1002T02A2A Bsh Motor Iec 100Mm 5,5 Nm Wo Key Ip40 S
SKU:
BSH1002T02A2A
UPC:
3389118139466
MPN:
Condition:
New
Number Of Motor Poles:
8
Stator Resistance:
0.56 Ohm 20 °C
Nominal Speed:
4000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM05AD42M3X, 200...240 V, three phase || 3000 rpm LXM05BD42M3X, 200...240 V, three phase || 3000 rpm LXM05CD42M3X, 200...240 V, three phase || 4000 rpm LXM15LD28M3, 230 V, three phase
Number Of Mounting Holes:
4
Maximum Axial Force Fa:
0.2 x Fr
Mounting Holes Diameter:
9 mm
Switching Frequency:
8 kHz
Range Compatibility:
Lexium 05 || Lexium 32 || Lexium 15
Rotor Inertia:
2.31 kg.cm²
Ip Degree Of Protection:
IP50 standard
Warranty:
18 months
[Us] Rated Supply Voltage:
480 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP111049EN
Mounting Support:
international standard flange
Centring Collar Depth:
3.5 mm
Maximum Radial Force Fr:
620 N 4000 rpm || 690 N 3000 rpm || 790 N 2000 rpm || 990 N 1000 rpm
Number Of Motor Stacks:
2
Product Or Component Type:
servo motor
Sustainable Offer Status:
Green Premium product
Shaft Diameter:
19 mm
Product Compatibility:
LXM32.D30M2 230 V single phase || LXM05AD42M3X 200...240 V three phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM15LD28M3 230 V three phase
Maximum Mechanical Speed:
6000 rpm
Continuous Stall Current:
9.9 A
Peak Stall Torque:
16.4 N.m LXM32.D30M2 10 A, 230 V, single phase || 11.59 N.m LXM15LD28M3, 230 V, three phase || 16 N.m LXM05AD42M3X, 200...240 V, three phase || 16 N.m LXM05BD42M3X, 200...240 V, three phase || 16 N.m LXM05CD42M3X, 200...240 V, three phase
Torque Constant:
0.59 N.m/A 120 °C
Nominal Torque:
3.7 N.m LXM32.D30M2 10 A, 230 V, single phase || 4 N.m LXM15LD28M3, 230 V, three phase || 4.4 N.m LXM05AD42M3X, 200...240 V, three phase || 4.4 N.m LXM05BD42M3X, 200...240 V, three phase || 4.4 N.m LXM05CD42M3X, 200...240 V, three phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Type Of Cooling:
natural convection
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Holding Brake:
without
Speed Feedback Resolution:
131072 points/turn x 4096 turns
Continuous Power:
2.51 W
Stator Inductance:
3 mH 20 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
N/A
Second Shaft:
without second shaft end
Circle Diameter Of The Mounting Holes:
115 mm
Phase:
three phase
Length:
204.5 mm
Rohs Exemption Information:
Yes
Maximum Current Irms:
31.2 A LXM15LD28M3 || 35.4 A LXM05AD42M3X || 35.4 A LXM05BD42M3X || 35.4 A LXM05CD42M3X || 30 A LXM32.D30M2
China Rohs Regulation:
X
Pvc Free:
Yes
Back Emf Constant:
37 V/krpm 120 °C
Maximum Permanent Current:
35.4 A
Device Short Name:
BSH
Net Weight:
5.9 kg
Nominal Output Power:
1500 W LXM32.D30M2 10 A, 230 V, single phase || 1400 W LXM05AD42M3X, 200...240 V, three phase || 1400 W LXM05BD42M3X, 200...240 V, three phase || 1400 W LXM05CD42M3X, 200...240 V, three phase || 1700 W LXM15LD28M3, 230 V, three phase
Electrical Connection:
rotatable right-angled connectors
Continuous Stall Torque:
5.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 5.5 N.m LXM15LD28M3, 230 V, three phase || 5.5 N.m LXM05AD42M3X, 200...240 V, three phase || 5.5 N.m LXM05BD42M3X, 200...240 V, three phase || 5.5 N.m LXM05CD42M3X, 200...240 V, three phase
