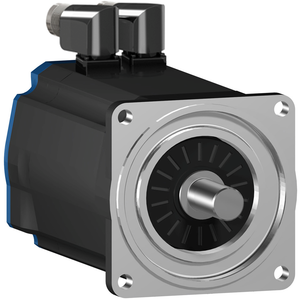

Schneider Electric BSH1002T12F2A Bsh Motor Iec 100Mm 5,5 Nm With Key Ip40

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BSH1002T12F2A

UPC:

3389118139619

MPN:

Condition:

New

Shaft Length:

40 mm

Continuous Stall Torque:

5.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 5.5 N.m LXM15LD28M3, 230 V, three phase || 5.5 N.m LXM05AD42M3X, 200...240 V, three phase || 5.5 N.m LXM05BD42M3X, 200...240 V, three phase || 5.5 N.m LXM05CD42M3X, 200...240 V, three phase

Centring Collar Diameter:

95 mm

Centring Collar Depth:

3.5 mm

China Rohs Regulation:

X

Back Emf Constant:

37 V/krpm 120 °C

Device Short Name:

BSH

Environmental Disclosure:

ENVPEP111049EN

Number Of Motor Poles:

8

Ip Degree Of Protection:

IP50 standard

Rohs Exemption Information:

Yes

Length:

235.5 mm

Net Weight:

6.3 kg

Maximum Axial Force Fa:

0.2 x Fr

Number Of Mounting Holes:

4

Mounting Holes Diameter:

9 mm

Electrical Connection:

rotatable right-angled connectors

Nominal Speed:

4000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM05AD42M3X, 200...240 V, three phase || 3000 rpm LXM05BD42M3X, 200...240 V, three phase || 3000 rpm LXM05CD42M3X, 200...240 V, three phase || 4000 rpm LXM15LD28M3, 230 V, three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Compatibility:

Lexium 05 || Lexium 32 || Lexium 15

Continuous Stall Current:

9.9 A

Stator Resistance:

0.56 Ohm 20 °C

Type Of Cooling:

natural convection

Maximum Permanent Current:

35.4 A

Number Of Motor Stacks:

2

Holding Torque:

9 N.m holding brake

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Current Irms:

31.2 A LXM15LD28M3 || 35.4 A LXM05AD42M3X || 35.4 A LXM05BD42M3X || 35.4 A LXM05CD42M3X || 30 A LXM32.D30M2

[Us] Rated Supply Voltage:

480 V

Holding Brake:

with

Pvc Free:

Yes

Peak Stall Torque:

16.4 N.m LXM32.D30M2 10 A, 230 V, single phase || 11.59 N.m LXM15LD28M3, 230 V, three phase || 16 N.m LXM05AD42M3X, 200...240 V, three phase || 16 N.m LXM05BD42M3X, 200...240 V, three phase || 16 N.m LXM05CD42M3X, 200...240 V, three phase

Feedback Type:

multiturn SinCos Hiperface

Maximum Mechanical Speed:

6000 rpm

Nominal Output Power:

1500 W LXM32.D30M2 10 A, 230 V, single phase || 1400 W LXM05AD42M3X, 200...240 V, three phase || 1400 W LXM05BD42M3X, 200...240 V, three phase || 1400 W LXM05CD42M3X, 200...240 V, three phase || 1700 W LXM15LD28M3, 230 V, three phase

Torque Constant:

0.59 N.m/A 120 °C

Mounting Support:

international standard flange

Mercury Free:

Yes

Stator Inductance:

3 mH 20 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shaft Diameter:

19 mm

Stator Electrical Time Constant:

5.36 ms 20 °C

Switching Frequency:

8 kHz

Phase:

three phase

Continuous Power:

2.51 W

Motor Flange Size:

100 mm

Key Width:

30 mm

Product Or Component Type:

servo motor

Sustainable Offer Status:

Green Premium product

Speed Feedback Resolution:

131072 points/turn x 4096 turns

Nominal Torque:

3.7 N.m LXM32.D30M2 10 A, 230 V, single phase || 4 N.m LXM15LD28M3, 230 V, three phase || 4.4 N.m LXM05AD42M3X, 200...240 V, three phase || 4.4 N.m LXM05BD42M3X, 200...240 V, three phase || 4.4 N.m LXM05CD42M3X, 200...240 V, three phase

Brake Pull-In Power:

18 W

Second Shaft:

without second shaft end

Circle Diameter Of The Mounting Holes:

115 mm

Warranty:

18 months

Shaft End:

keyed

Product Compatibility:

LXM32.D30M2 230 V single phase || LXM05AD42M3X 200...240 V three phase || LXM05BD42M3X 200...240 V three phase || LXM05CD42M3X 200...240 V three phase || LXM15LD28M3 230 V three phase

Circularity Profile:

N/A

Rotor Inertia:

2.928 kg.cm²

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Radial Force Fr:

620 N 4000 rpm || 690 N 3000 rpm || 790 N 2000 rpm || 990 N 1000 rpm

Datasheet:

View
