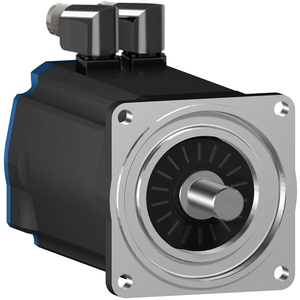

Schneider Electric BSH1003P21A2A Bsh Motor Iec 100Mm 7,8 Nm Wo Key Ip65 S
SKU:
BSH1003P21A2A
UPC:
3389118140127
MPN:
Condition:
New
Shaft End:
untapped
Maximum Radial Force Fr:
1050 N 1000 rpm || 660 N 4000 rpm || 730 N 3000 rpm || 830 N 2000 rpm
Stator Electrical Time Constant:
6.15 ms 20 °C
Nominal Output Power:
2000 W LXM32.D30N4 10 A, 400 V, three phase || 1700 W LXM15LD17N4, 230 V, three phase || 1700 W LXM15LD21M3, 230 V, three phase || 1800 W LXM05AD34N4, 380...480 V, three phase || 1800 W LXM05BD34N4, 380...480 V, three phase || 1800 W LXM05CD34N4, 380
Peak Stall Torque:
28.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 19.69 N.m LXM15LD28M3, 230 V, three phase || 19.69 N.m LXM15MD28N4, 400 V, three phase || 19.69 N.m LXM15MD28N4, 480 V, three phase || 23.17 N.m LXM15MD40N4, 400 V, three phase || 23.17 N.m LXM15MD40N4
China Rohs Regulation:
X
[Us] Rated Supply Voltage:
480 V
Mercury Free:
Yes
Stator Resistance:
1.43 Ohm 20 °C
Motor Flange Size:
100 mm
Environmental Disclosure:
ENVPEP111049EN
Warranty:
18 months
Product Or Component Type:
servo motor
Continuous Stall Torque:
8 N.m LXM32.D30N4 10 A, 400 V, three phase || 6.7 N.m LXM15LD21M3, 230 V, three phase || 6.7 N.m LXM15LD17N4, 230 V, three phase || 6.7 N.m LXM15LD17N4, 400 V, three phase || 6.7 N.m LXM15LD17N4, 480 V, three phase || 7.8 N.m LXM15LD28M3, 230 V, thre
Nominal Speed:
3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 1500 rpm LXM05CD42M3X, 200...240 V, three phase || 2000 rpm LXM15LD28M3, 230 V, three phase || 2500 rpm LXM15LD17N4, 230 V, three phase || 2500 rpm LXM15LD21M3, 230 V, three phase || 3000 rpm LXM05AD34
Type Of Cooling:
natural convection
Feedback Type:
single turn SinCos Hiperface
Speed Feedback Resolution:
131072 points/turn
Device Short Name:
BSH
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Nominal Torque:
6.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 5 N.m LXM15MD28N4, 400 V, three phase || 5 N.m LXM15MD40N4, 400 V, three phase || 5.7 N.m LXM05AD34N4, 380...480 V, three phase || 5.7 N.m LXM05BD34N4, 380...480 V, three phase || 5.7 N.m LXM05CD34N4, 3
Number Of Motor Stacks:
3
Mounting Support:
international standard flange
Number Of Mounting Holes:
4
Switching Frequency:
8 kHz
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
N/A
Maximum Current Irms:
28.3 A LXM15LD21M3 || 28.3 A LXM05BD42M3X || 28.3 A LXM05BD34N4 || 28.3 A LXM05CD28M2 || 28.3 A LXM05CD42M3X || 28.3 A LXM05CD34N4 || 28.3 A LXM32.D30N4 || 28.3 A LXM15LD28M3 || 28.3 A LXM15LD17N4 || 28.3 A LXM15MD28N4 || 28.3 A LXM15MD40N4 || 28.3 A
Rotor Inertia:
3.22 kg.cm²
Shaft Diameter:
19 mm
Continuous Power:
3.14 W
Holding Brake:
without
Maximum Mechanical Speed:
6000 rpm
Product Compatibility:
LXM05AD28M2 200...240 V single phase || LXM15LD17N4 480 V three phase || LXM15LD28M3 230 V three phase || LXM05AD34N4 380...480 V three phase || LXM05BD34N4 380...480 V three phase || LXM05CD34N4 380...480 V three phase || LXM15MD28N4 400 V three pha
Electrical Connection:
rotatable right-angled connectors
Range Compatibility:
Lexium 05 || Lexium 32 || Lexium 15
Centring Collar Diameter:
95 mm
Continuous Stall Current:
6.6 A
Net Weight:
7.4 kg
Phase:
three phase
Length:
240.5 mm
Back Emf Constant:
77 V/krpm 120 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shaft Length:
40 mm
Torque Constant:
1.22 N.m/A 120 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This product is part of the Lexium range, an offer of motion servo drives and servo motors. The 8-pole AC servo motor features a low moment of inertia with maximum mechanical speed of 6000RPM and...
