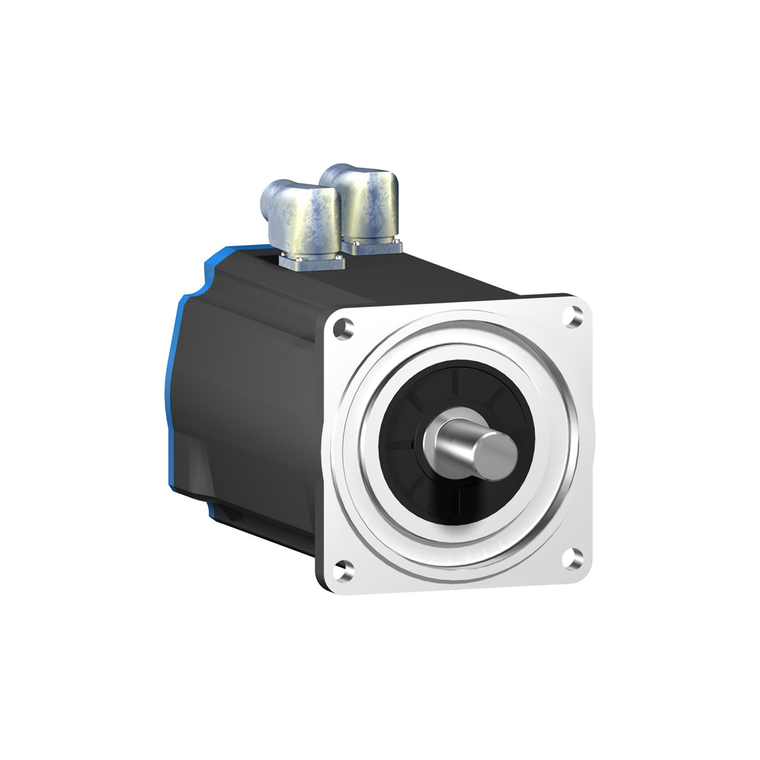

Schneider Electric BSH1401P02A2A Bsh Motor Iec 140Mm 11,4 Nmwo Key Ip40 S
SKU:
BSH1401P02A2A
UPC:
3389118140790
MPN:
Condition:
New
Maximum Radial Force Fr:
1530 N 3000 rpm || 1760 N 2000 rpm || 2210 N 1000 rpm
Continuous Power:
3.6 W
Length:
217.5 mm
Nominal Speed:
2500 rpm LXM32.D30N4 10 A, 400 V, three phase || 3000 rpm LXM15MD28N4, 480 V, three phase || 3000 rpm LXM15MD40N4, 480 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase || 3000 rpm LXM05AD34N4, 380...480 V, three phase || 3000 rpm LXM05
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shaft Length:
50 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Pvc Free:
Yes
Stator Resistance:
1.41 Ohm 20 °C
Warranty:
18 months
Circularity Profile:
N/A
Type Of Cooling:
natural convection
Number Of Mounting Holes:
4
Peak Stall Torque:
27 N.m LXM32.D30N4 10 A, 400 V, three phase || 23.33 N.m LXM05BD34N4, 380...480 V, three phase || 23.33 N.m LXM05CD34N4, 380...480 V, three phase || 27 N.m LXM32.D30N4 10 A, 480 V, three phase || 23.33 N.m LXM15MD28N4, 230 V, three phase || 23.33 N.m
Feedback Type:
multiturn SinCos Hiperface
Mounting Holes Diameter:
11 mm
Stator Inductance:
15.6 mH 20 °C
Switching Frequency:
8 kHz
Device Short Name:
BSH
Continuous Stall Current:
7.8 A
Stator Electrical Time Constant:
11.06 ms 20 °C
Mounting Support:
international standard flange
Torque Constant:
1.43 N.m/A 120 °C
Speed Feedback Resolution:
131072 points/turn x 4096 turns
Second Shaft:
without second shaft end
Rohs Exemption Information:
Yes
Shaft Diameter:
24 mm
Number Of Motor Stacks:
1
[Us] Rated Supply Voltage:
480 V
Electrical Connection:
rotatable right-angled connectors
Sustainable Offer Status:
Green Premium product
Shaft End:
untapped
Product Or Component Type:
servo motor
China Rohs Regulation:
X
Centring Collar Depth:
3.5 mm
Nominal Torque:
9.5 N.m LXM32.D30N4 10 A, 400 V, three phase || 9.1 N.m LXM15LD28M3, 230 V, three phase || 9.1 N.m LXM15MD28N4, 230 V, three phase || 9.5 N.m LXM32.D30N4 10 A, 480 V, three phase || 6.8 N.m LXM15MD28N4, 480 V, three phase || 6.8 N.m LXM15MD40N4, 480
Number Of Motor Poles:
10
Range Compatibility:
Lexium 15 || Lexium 32 || Lexium 05
Back Emf Constant:
100 V/krpm 120 °C
Phase:
three phase
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Centring Collar Diameter:
130 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Permanent Current:
20.8 A
Holding Brake:
without
Motor Flange Size:
140 mm
Ip Degree Of Protection:
IP50 standard
Product Compatibility:
LXM15LD28M3 230 V three phase || LXM05AD34N4 380...480 V three phase || LXM05BD34N4 380...480 V three phase || LXM05CD34N4 380...480 V three phase || LXM15MD28N4 400 V three phase || LXM15MD28N4 480 V three phase || LXM15MD40N4 400 V three phase || L
Nominal Output Power:
2500 W LXM32.D30N4 10 A, 400 V, three phase || 2150 W LXM15MD28N4, 480 V, three phase || 2150 W LXM15MD40N4, 480 V, three phase || 3000 W LXM32.D30N4 10 A, 480 V, three phase || 2000 W LXM15MD28N4, 400 V, three phase || 2000 W LXM15MD40N4, 400 V, thr
Rotor Inertia:
7.41 kg.cm²
Circle Diameter Of The Mounting Holes:
165 mm
Net Weight:
11.9 kg
Continuous Stall Torque:
11.1 N.m LXM32.D30N4 10 A, 400 V, three phase || 11.4 N.m LXM05BD34N4, 380...480 V, three phase || 11.4 N.m LXM05CD34N4, 380...480 V, three phase || 11.1 N.m LXM32.D30N4 10 A, 480 V, three phase || 11.1 N.m LXM15MD28N4, 400 V, three phase || 11.1 N.m
Maximum Mechanical Speed:
4000 rpm
Maximum Current Irms:
20.8 A LXM15LD28M3 || 20.8 A LXM15MD28N4 || 20.8 A LXM15MD40N4 || 20.8 A LXM05AD34N4 || 20.8 A LXM05BD34N4 || 20.8 A LXM05CD34N4 || 20.8 A LXM32.D30N4
