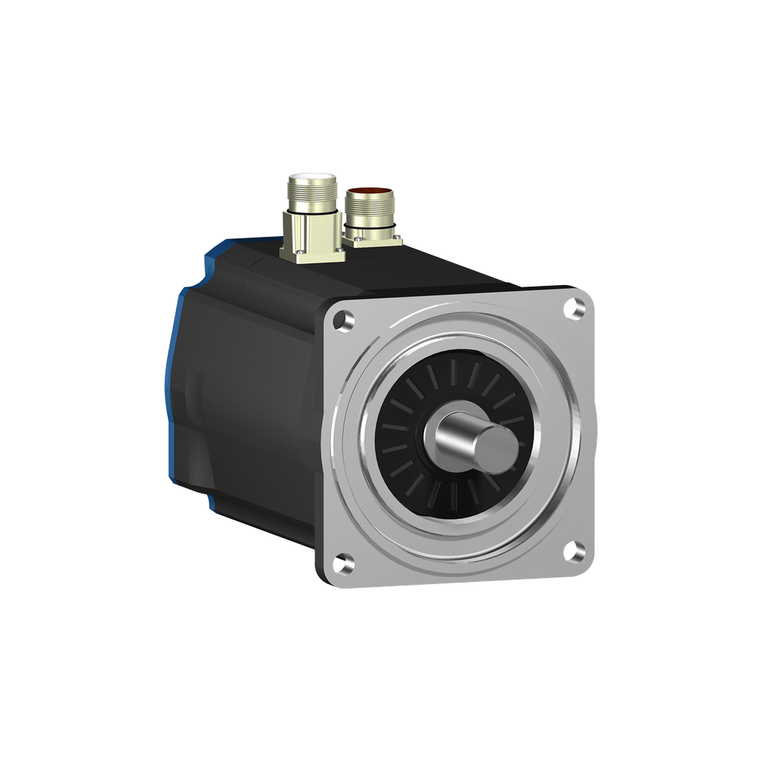

Schneider Electric BSH1401P32A1A Bsh Motor Iec 140Mm 11,4 Nm With Key Ip6
SKU:
BSH1401P32A1A
UPC:
3389118140950
MPN:
Condition:
New
Shaft Length:
50 mm
Nominal Output Power:
2500 W LXM32.D30N4 10 A, 400 V, three phase || 2150 W LXM15MD28N4, 480 V, three phase || 2150 W LXM15MD40N4, 480 V, three phase || 3000 W LXM32.D30N4 10 A, 480 V, three phase || 2000 W LXM15MD28N4, 400 V, three phase || 2000 W LXM15MD40N4, 400 V, thr
Sustainable Offer Status:
Green Premium product
Stator Resistance:
1.41 Ohm 20 °C
Mounting Holes Diameter:
11 mm
Continuous Stall Torque:
11.1 N.m LXM32.D30N4 10 A, 400 V, three phase || 11.4 N.m LXM05BD34N4, 380...480 V, three phase || 11.4 N.m LXM05CD34N4, 380...480 V, three phase || 11.1 N.m LXM32.D30N4 10 A, 480 V, three phase || 11.1 N.m LXM15MD28N4, 400 V, three phase || 11.1 N.m
Nominal Torque:
9.5 N.m LXM32.D30N4 10 A, 400 V, three phase || 9.1 N.m LXM15LD28M3, 230 V, three phase || 9.1 N.m LXM15MD28N4, 230 V, three phase || 9.5 N.m LXM32.D30N4 10 A, 480 V, three phase || 6.8 N.m LXM15MD28N4, 480 V, three phase || 6.8 N.m LXM15MD40N4, 480
Circle Diameter Of The Mounting Holes:
165 mm
Back Emf Constant:
100 V/krpm 120 °C
Switching Frequency:
8 kHz
Shaft Diameter:
24 mm
Electrical Connection:
straight connectors
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Permanent Current:
20.8 A
Net Weight:
11.9 kg
Ip Degree Of Protection:
IP65 standard || IP67 with IP67 kit
Circularity Profile:
N/A
Peak Stall Torque:
27 N.m LXM32.D30N4 10 A, 400 V, three phase || 23.33 N.m LXM05BD34N4, 380...480 V, three phase || 23.33 N.m LXM05CD34N4, 380...480 V, three phase || 27 N.m LXM32.D30N4 10 A, 480 V, three phase || 23.33 N.m LXM15MD28N4, 230 V, three phase || 23.33 N.m
Environmental Disclosure:
ENVPEP111049EN
Number Of Mounting Holes:
4
Maximum Radial Force Fr:
1530 N 3000 rpm || 1760 N 2000 rpm || 2210 N 1000 rpm
Centring Collar Diameter:
130 mm
Nominal Speed:
2500 rpm LXM32.D30N4 10 A, 400 V, three phase || 3000 rpm LXM15MD28N4, 480 V, three phase || 3000 rpm LXM15MD40N4, 480 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase || 3000 rpm LXM05AD34N4, 380...480 V, three phase || 3000 rpm LXM05
Range Compatibility:
Lexium 32 || Lexium 15 || Lexium 05
Motor Flange Size:
140 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stator Electrical Time Constant:
11.06 ms 20 °C
[Us] Rated Supply Voltage:
480 V
Product Compatibility:
LXM15LD28M3 230 V three phase || LXM05AD34N4 380...480 V three phase || LXM05BD34N4 380...480 V three phase || LXM05CD34N4 380...480 V three phase || LXM15MD28N4 400 V three phase || LXM15MD28N4 480 V three phase || LXM15MD40N4 400 V three phase || L
Continuous Stall Current:
7.8 A
Phase:
three phase
Speed Feedback Resolution:
131072 points/turn x 4096 turns
China Rohs Regulation:
X
Holding Brake:
without
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Product Or Component Type:
servo motor
Number Of Motor Poles:
10
Rohs Exemption Information:
Yes
Shaft End:
keyed
Length:
217.5 mm
Type Of Cooling:
natural convection
Rotor Inertia:
7.41 kg.cm²
Device Short Name:
BSH
Mounting Support:
international standard flange
Feedback Type:
multiturn SinCos Hiperface
Maximum Mechanical Speed:
4000 rpm
Continuous Power:
3.6 W
Stator Inductance:
15.6 mH 20 °C
Warranty:
18 months
Key Width:
40 mm
Centring Collar Depth:
3.5 mm
Second Shaft:
without second shaft end
Maximum Axial Force Fa:
0.2 x Fr
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Motor Stacks:
1
Maximum Current Irms:
20.8 A LXM15LD28M3 || 20.8 A LXM15MD28N4 || 20.8 A LXM15MD40N4 || 20.8 A LXM05AD34N4 || 20.8 A LXM05BD34N4 || 20.8 A LXM05CD34N4 || 20.8 A LXM32.D30N4
