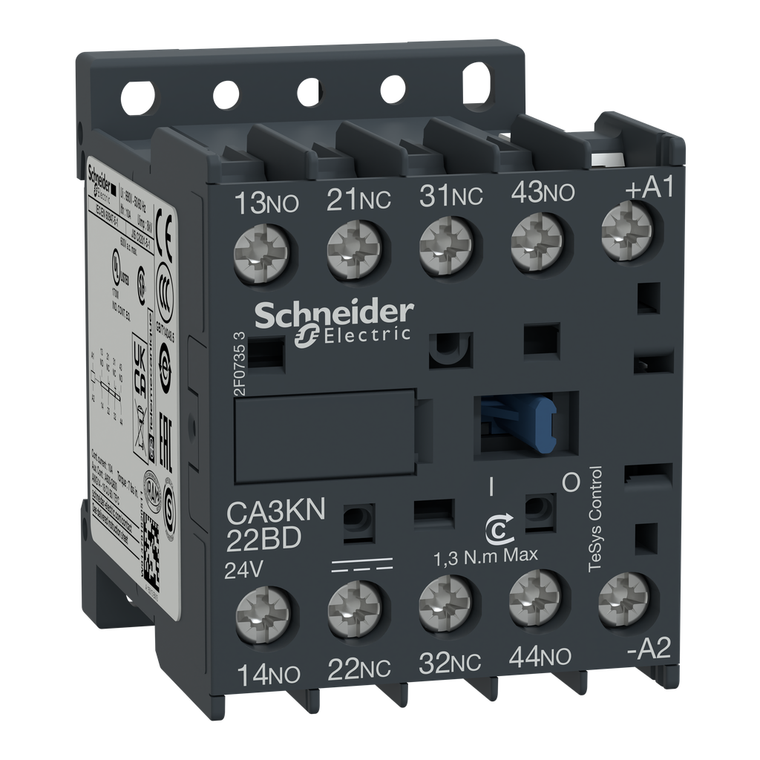

Schneider Electric CA3KN22JD Control relay, TeSys K, 2 NO + 2 NC, lt or eq to 690V, 12VDC standard coil

(No reviews yet) Write a Review
SKU:
CA3KN22JD
MPN:
CA3KN22JD
Condition:
New
Flame Retardance:
V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
Associated Fuse Rating:
10 A gG conforming to IEC 60947 || 10 A gG conforming to VDE 0660
Protective Treatment:
TC IEC 60068
Weight:
0.225 kg
Maximum Operating Rate:
10000 cyc/h
Immunity To Microbreaks:
2 ms
Depth:
57 mm
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information:
Yes
[Uc] Control Circuit Voltage:
12 V DC
Mechanical Robustness:
vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
Warranty:
18 months
Country of Origin:
Indonesia
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Mercury Free:
Yes
Circularity Profile:
ENVEOLI1503003EN
Control Circuit Voltage Limits:
operational: 0.8...1.15 Uc (at <50°C) || drop-out: 0.1...0.75 Uc (at <50°C)
Insulation Resistance:
> 10 MOhm
Irms Rated Making Capacity:
110 A IEC 60947
Standards:
EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
Product Name:
TeSys CAK
Width:
45 mm
Minimum Switching Current:
5 mA
Operating Altitude:
6561.68 ft (2000 m) without derating
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Utilisation Category:
DC-13 || AC-15
Heat Dissipation:
3-3 W
Pole Contact Composition:
2 NO + 2 NC
Net Weight:
0.225 kg
Tightening Torque:
1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2
Inrush Power In W:
3-3 W 20°C)
[Ith] Conventional Free Air Thermal Current:
10 A (at 50°C)
Reach Free Of Svhc:
Yes
Hold-In Power Consumption In W:
3-3 W 20°C
Height:
58 mm
Contactor Application:
control circuit
Mounting Support:
rail || plate
Non Overlap Distance:
0.5 mm
Minimum Switching Voltage:
17 V
[Ue] Rated Operational Voltage:
<= 690 V <= 400 Hz
Ip Degree Of Protection:
IP2X
Ambient Air Temperature For Storage:
-50-80°C
Range:
TeSys
Product Or Component Type:
control relay
[Ui] Rated Insulation Voltage:
690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
Mechanical Durability:
20 Mcycles
Product Certifications:
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Device Short Name:
CA3K
Eu Rohs Directive:
Compliant
$50.20

Description

TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 12V DC control circuit with no inrush consumption, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
