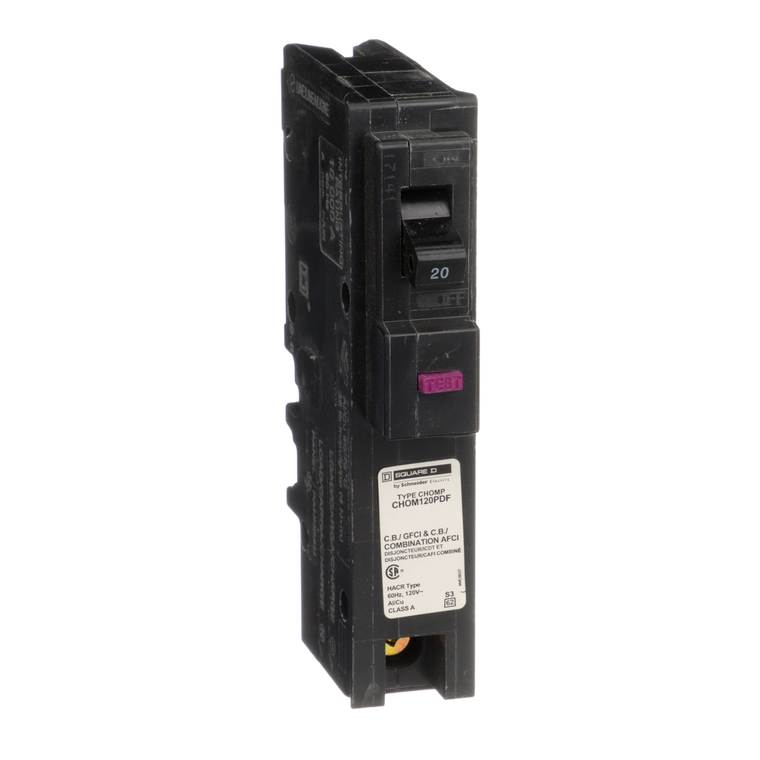

Schneider Electric CHOM120PDF Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug on neutral, plug in, UL
Schneider Electric
$307.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric CHOM120PDF Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug on neutral, plug in, UL
CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. It includes a Dual Function feature with plug on neutral. CHOM Homeline miniature circuit breakers are CSA certified.
- Rohs Exemption Information:
- Yes
- Circuit Breaker Type:
- combination ARC-fault class A 5 mA || ground fault protecting
- Mercury Free:
- Yes
- Product Certifications:
- CSA
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mounting Mode:
- plug-on
- Range Of Product:
- Homeline
- [Ue] Rated Operational Voltage:
- 120 V AC
- Country of Origin:
- Mexico
- Circularity Profile:
- ENVEOLI2212006
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Halogen Content Performance:
- Halogen free product
- Short-Circuit Current:
- 10 kA
- Eu Rohs Directive:
- Compliant with Exemptions
- Number Of Spaces Required:
- 1
- Line Rated Current:
- 20 A
- Ambient Air Temperature For Operation:
- 40°C
- Product Or Component Type:
- miniature circuit-breaker
- Environmental Disclosure:
- ENVPEP2212006
- Connections - Terminals:
- plug-on neutral
- Sustainable Offer Status:
- Green Premium product
