Schneider Electric EDB14015EPD Miniature Circuit Breaker 277V 15A
Schneider Electric
$1,726.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

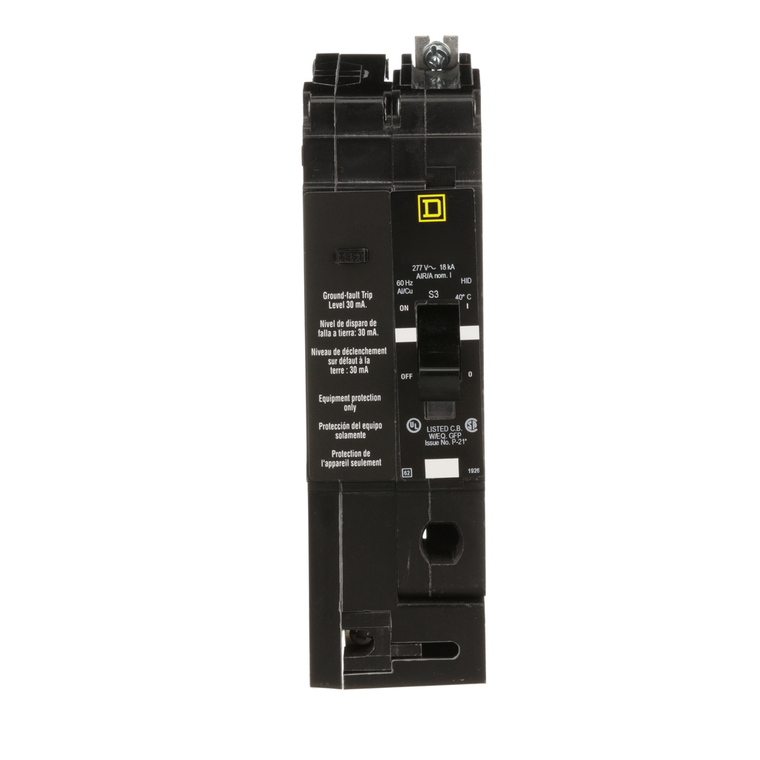

Schneider Electric EDB14015EPD Miniature Circuit Breaker 277V 15A
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 15A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.
- Number Of Spaces:
- 2
- Product Destination:
- NF panelboard
- Circuit Breaker Application:
- Switching Duty rated || HACR rated || HID rated
- Earth-Leakage Sensitivity:
- 30 mA
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Holding Current:
- 270 A
- Protection Type:
- short-circuit || overload
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Height:
- 6.64 in
- Width:
- 1.96 in
- Product Certifications:
- cULus || IEC
- Ambient Air Temperature For Operation:
- 40 °C
- [Ue] Rated Operational Voltage:
- 277 V AC
- Product Or Component Type:
- miniature circuit-breaker
- Depth:
- 4.05 in
- Tightening Torque:
- 3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
- Electrical Connection:
- lugs aluminium
- Trip Unit Technology:
- thermal-magnetic
- Module Type:
- E-Frame
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Trip Unit Rating:
- 875-875 A
- Earth-Leakage Protection Class:
- class B
- Number Of Spaces Required:
- 2
- Line Rated Current:
- 15 A
- Local Signalling:
- trip indicator
- Warranty:
- 18 months
- Device Short Name:
- EDB
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Breaking Capacity:
- 18 kA 277 V AC || 18 kA 240 V AC || 25 kA 120 V AC || 18 kA 120/240 V AC
- Awg Gauge:
- AWG 14...AWG 6 copper || AWG 12...AWG 4 aluminium
- Breaking Capacity Code:
- D
- Rohs Exemption Information:
- Yes
- Net Weight:
- 2 lb(US)
- Number Of Poles:
- 1
- Mounting Mode:
- bolt-on
- Brochure:
- View
- Datasheet:
- View
