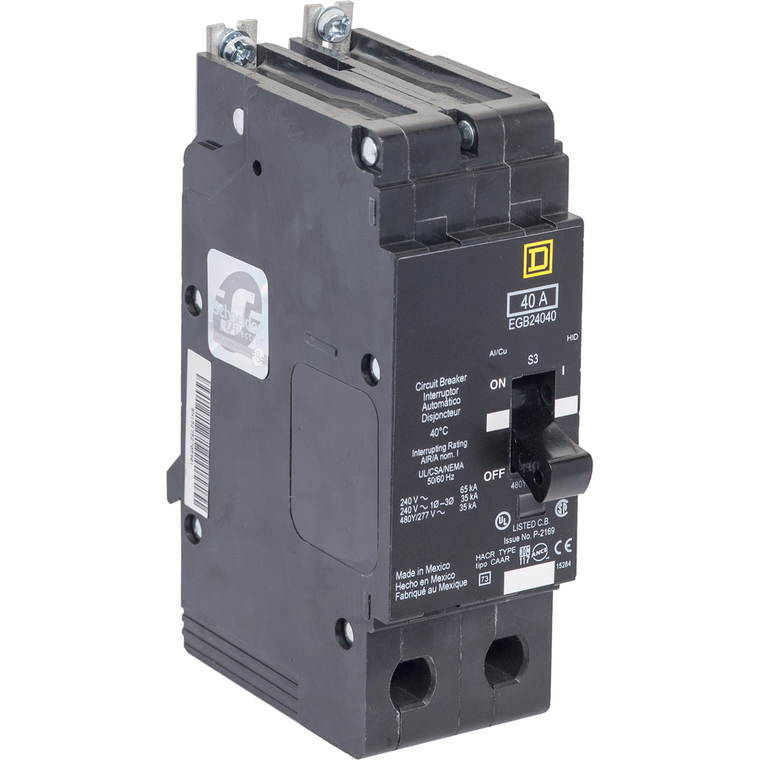

Schneider Electric EDB24045 Miniature Circuit Breaker 480Y/277V 45A
Schneider Electric
$536.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric EDB24045 Miniature Circuit Breaker 480Y/277V 45A
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 45A, 2 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
- Product Or Component Type:
- miniature circuit-breaker
- Breaking Capacity Code:
- D
- Rohs Exemption Information:
- Yes
- Width:
- 1.96 in
- Number Of Spaces Required:
- 2
- Depth:
- 4.05 in
- Circuit Breaker Application:
- HACR rated || HID rated
- Module Type:
- E-Frame
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Number Of Spaces:
- 2
- Device Short Name:
- EDB
- Local Signalling:
- trip indicator
- Product Certifications:
- cULus
- Trip Unit Rating:
- 1800-1800 A
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Trip Unit Technology:
- thermal-magnetic
- Holding Current:
- 630 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- 40 °C
- Line Rated Current:
- 45 A
- Tightening Torque:
- 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Electrical Connection:
- lugs aluminium
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
- Net Weight:
- 3 lb(US)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Protection Type:
- overload || short-circuit
- Product Destination:
- NF panelboard
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Number Of Poles:
- 2
- Height:
- 5.66 in
- [Ue] Rated Operational Voltage:
- 480Y/277 V AC
- Mounting Mode:
- bolt-on
- Breaking Capacity:
- 18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
