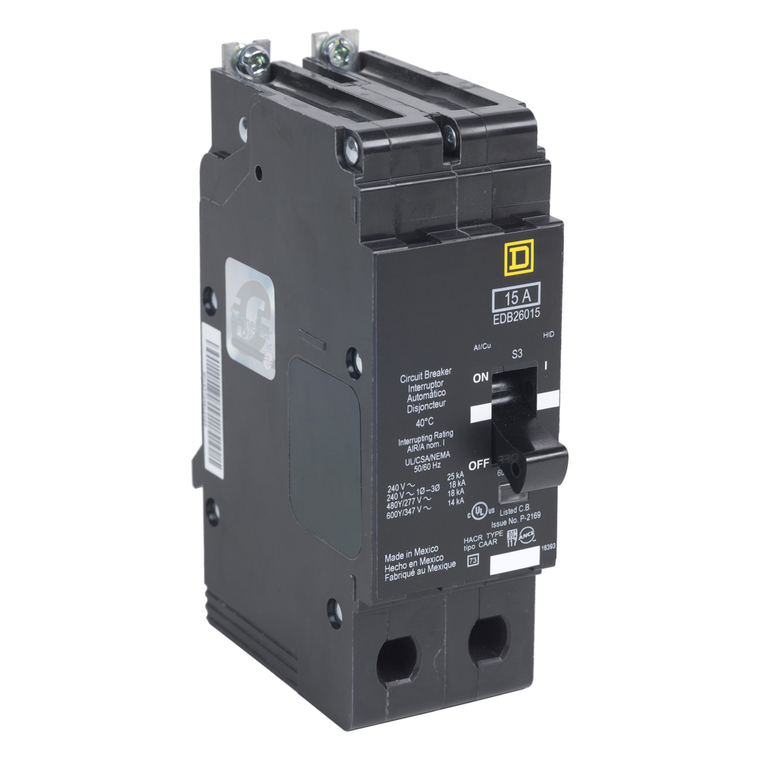

Schneider Electric EGB26015 Miniature Circuit Breaker 600V 15A

(No reviews yet) Write a Review
SKU:
EGB26015
UPC:
785901412342
Condition:
New
Line Rated Current:
15 A
Breaking Capacity Code:
G
Range Of Product:
125 A Frame EDB-EGB-EJB
Trip Unit Technology:
thermal-magnetic
Mounting Mode:
bolt-on
Net Weight:
3 lb(US)
Product Destination:
NF panelboard
Number Of Spaces:
2
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Height:
5.66 in
Product Or Component Type:
circuit-breaker
Breaking Capacity:
18 kA 600Y/347 V AC
Number Of Spaces Required:
2
Circuit Breaker Application:
HACR rated
Holding Current:
270 A
Tightening Torque:
3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
Trip Unit Rating:
875-875 A
Local Signalling:
trip indicator
Ambient Air Temperature For Operation:
40 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Ue] Rated Operational Voltage:
600Y/347 V AC
Awg Gauge:
AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
Depth:
4.05 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
EGB
Module Type:
E-Frame
Product Certifications:
cULus
Warranty:
18 months
Electrical Connection:
lugs aluminium
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Protection Type:
overload || short-circuit
Number Of Poles:
2
Width:
1.96 in
$776.00

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 15A, 2 pole, and has an operating voltage of 600Y/347 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
