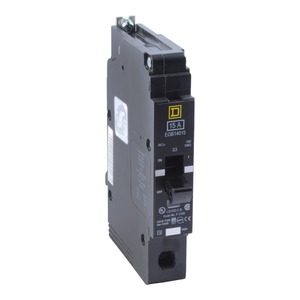

Schneider Electric EJB14015 Miniature Circuit Breaker 277V 15A

(No reviews yet) Write a Review
SKU:
EJB14015
UPC:
785901130499
Condition:
New
Number Of Poles:
1
Device Short Name:
EJB
Trip Unit Rating:
875-875 A
Breaking Capacity:
65 kA 240 V AC || 65 kA 277 V AC || 100 kA 120 V AC || 65 kA 120/240 V AC
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Width:
0.98 in
Number Of Spaces:
1
Product Or Component Type:
miniature circuit-breaker
Product Destination:
NF panelboard
Electrical Connection:
lugs aluminium
Height:
5.66 in
Holding Current:
270 A
Warranty:
18 months
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Net Weight:
2 lb(US)
Module Type:
E-Frame
Rohs Exemption Information:
Yes
Line Rated Current:
15 A
Ambient Air Temperature For Operation:
40 °C
Circuit Breaker Application:
HACR rated || Switching Duty rated || HID rated
Local Signalling:
trip indicator
Mercury Free:
Yes
Number Of Spaces Required:
1
Mounting Mode:
bolt-on
Breaking Capacity Code:
J
Awg Gauge:
AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
Trip Unit Technology:
thermal-magnetic
Range Of Product:
125 A Frame EDB-EGB-EJB
[Ue] Rated Operational Voltage:
277 V AC
Product Certifications:
cULus
Depth:
4.05 in
Protection Type:
overload || short-circuit
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Tightening Torque:
3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
  • Schneider Electric EJB14015 Miniature Circuit Breaker 277V 15A
  • Schneider Electric EJB14015 Miniature Circuit Breaker 277V 15A
  • Schneider Electric EJB14015 Miniature Circuit Breaker 277V 15A
$408.00

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 15A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 100 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.
