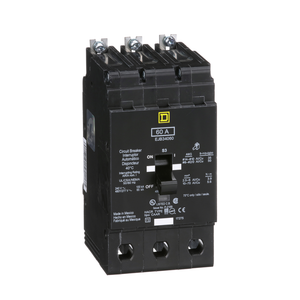

Schneider Electric EJB34060CA Miniature Circuit Breaker 480Y/277V 60A

(No reviews yet) Write a Review
SKU:
EJB34060CA
UPC:
3606486143148
Condition:
New
Tightening Torque:
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Line Rated Current:
60 A
Module Type:
E-Frame
Mounting Mode:
bolt-on
Product Or Component Type:
miniature circuit-breaker
Electrical Connection:
lugs aluminium
[Ue] Rated Operational Voltage:
480Y/277 V AC
Net Weight:
4 lb(US)
Trip Unit Rating:
1800-1800 A
Awg Gauge:
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Local Signalling:
trip indicator
Width:
2.94 in
Breaking Capacity:
65 kA 277 V AC || 100 kA 240 V AC || 65 kA 480Y/277 V AC || 100 kA 120 V AC || 100 kA 120/240 V AC
Number Of Poles:
3
Range Of Product:
125 A Frame EDB-EGB-EJB
Circuit Breaker Application:
HACR rated
Breaking Capacity Code:
J
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Protection Type:
overload || short-circuit
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
EJB
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Number Of Spaces:
3
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation:
50 °C
Number Of Spaces Required:
3
Product Destination:
NF panelboard
Holding Current:
630 A
Height:
5.66 in
Depth:
4.05 in
Product Certifications:
cULus
Trip Unit Technology:
thermal-magnetic
$1,630.00

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 60A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 100 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 50 degrees C. HACR rated.
