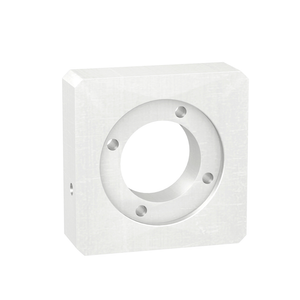

Schneider Electric GBK1201400F Kit Gbx-Gby120 Bsh-Bmh140
Schneider Electric
$148.58
adaptation kit, Lexium, GBK, size 120, 31mm, for assembly motor and gearbox
- Gearbox External Diameter:
- 120 mm
- Product Or Component Type:
- adaptation kit
- Number Of Motor Stacks:
- 3 || 2 || 1
- Kit Composition:
- an adaptor plate || a shaft end adaptor || screws and bolts for mounting
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Compatibility:
- BMH || SH3 || BSH || ILM || MH3
- Accessory / Separate Part Destination:
- for assembly motor and gearbox
- Environmental Disclosure:
- ENVPEP111245EN
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Length:
- 31.8 mm
- Accessory / Separate Part Category:
- adaptation accessory
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Short Name:
- GBK
- Net Weight:
- 0.65 kg
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Motor Flange Size:
- 140 mm
- Pvc Free:
- Yes
- Range Compatibility:
- Lexium 62 || Lexium 32 || Lexium 62 ILM || Lexium 52
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Catalog:
- View
- Datasheet:
- View
