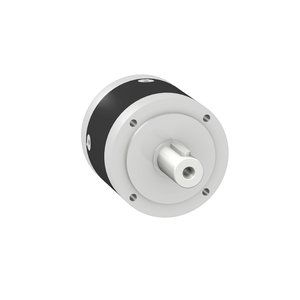

Schneider Electric GBX060060K Gearbox Ple60 I=60

(No reviews yet) Write a Review

Write a Review

Schneider Electric GBX060060K Gearbox Ple60 I=60

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GBX060060K

UPC:

3606480388309

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP111245EN

Sustainable Offer Status:

Green Premium product

Device Short Name:

GBX

Housing Material:

black anodized aluminium

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Additional Information:

lubricated for life

Maximum Torsional Backlash:

15 arc.min

Continuous Output Torque:

44 N.m 100 rpm 30 °C

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Net Weight:

1.3 kg

Reduction Ratio:

2.50069444444444

Housing Colour:

black

Mounting Position:

any position

Circularity Profile:

N/A

Product Or Component Type:

planetary gearbox

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shaft Material:

C 45

Efficiency:

0.9

Pvc Free:

Yes

Product Compatibility:

ILE || ILS || ILA || SH3 || MH3 || ILM

Maximum Output Torque:

70 N.m 100 rpm 30 °C

Rohs Exemption Information:

Yes

Gearbox External Diameter:

60 mm

Ambient Air Temperature For Operation:

-25-90 °C

Gear Box Type:

straight teeth

Ip Degree Of Protection:

shaft output IP54

Range Compatibility:

Lexium 52 || Lexium 62 || Lexium 62 ILM || Lexium 32

Maximum Axial Force Fa:

450 N 100 rpm, during 30000 hour at 30°C

Mercury Free:

Yes

Internal Diameter:

14.0 mm

Noise Level:

58 dB 1 m, no-load

Shaft Moment Of Inertia:

0.076 kg.cm²

Maximum Radial Force Fr:

340 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Service Life In Hours:

30000 h 100 rpm 30 °C

Warranty:

18 months

Torsional Rigidity:

2.5 N.m/arcmin
