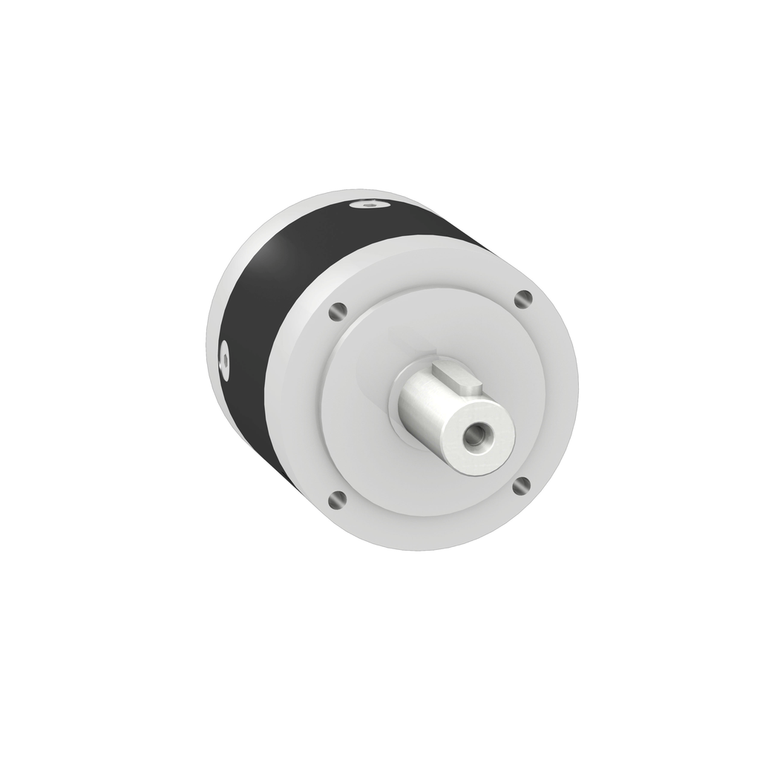

Schneider Electric GBX120005K Gearbox Ple120 I=5
This product is part of the Lexium range, an offer of motion servo drives and servo motors. This planetary gearbox has straight teeth, lubricated for life. The gearbox external diameter is 120mm. It is a gearbox with a reduction ratio of 5/1, maximum axial force (Fa) of 2100N at 100RPM and continuous output torque of 195N.m at 100RPM at 30°C. It offers service life of about 30000h at 100RPM at 30°C. It is an IP54 rated product. The enclosure is made of black anodized aluminium. It weighs 6kg. This product is compatible with servo motors and Lexium servo drives. It can be mounted in any position. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- N/A
- Product Compatibility:
- BMI 100 mm, 2 || BMI 100 mm, 3 || BMH 140 mm, 1 || BMH 140 mm, 2 || BSH 100 mm, 4 || BSH 140 mm, 1 || BSH 140 mm, 2 || BRS3 || BCH2 100 mm, 1 || BCH2 100 mm, 2 || BCH2 130 mm, 1 || BCH2 130 mm, 2 || BCH2 130 mm, 3 || BCH2 130 mm, 4 || SH3 || MH3 || I
- Housing Material:
- black anodized aluminium
- Pvc Free:
- Yes
- Environmental Disclosure:
- ENVPEP111245EN
- Maximum Torsional Backlash:
- 7 arc.min
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- GBX
- Additional Information:
- lubricated for life
- Mounting Position:
- any position
- Service Life In Hours:
- 30000 h 100 rpm 30 °C
- Shaft Moment Of Inertia:
- 1.53 kg.cm²
- Product Or Component Type:
- planetary gearbox
- Internal Diameter:
- 24.0 mm
- Ambient Air Temperature For Operation:
- -25-90 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Gearbox External Diameter:
- 120 mm
- Net Weight:
- 6 kg
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Efficiency:
- 0.96
- Torsional Rigidity:
- 12 N.m/arcmin
- Continuous Output Torque:
- 195 N.m 100 rpm 30 °C
- Maximum Axial Force Fa:
- 2100 N 100 rpm, during 30000 hour at 30°C
- Range Compatibility:
- Lexium 62 ILM || Lexium 32 || Lexium 62 || Lexium SD3 || Lexium 52 || Lexium 28 || Lexium 32i
- Maximum Output Torque:
- 312 N.m 100 rpm 30 °C
- Gear Box Type:
- straight teeth
- Ip Degree Of Protection:
- shaft output IP54
- Reduction Ratio:
- 0.209027777777778
- Shaft Material:
- C 45
- Housing Colour:
- black
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Maximum Radial Force Fr:
- 1500 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
- Noise Level:
- 65 dB 1 m, no-load
