Schneider Electric GBX120009K Gearbox Ple120 I=9
Schneider Electric
$1,368.98
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

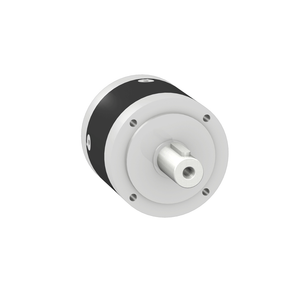

Schneider Electric GBX120009K Gearbox Ple120 I=9
This product is part of the Lexium range, an offer of motion servo drives and servo motors. This planetary gearbox has straight teeth, lubricated for life. The gearbox external diameter is 120mm. It is a gearbox with a reduction ratio of 9/1, maximum axial force (Fa) of 2100N at 100RPM and continuous output torque of 210N.m at 100RPM at 30°C. It offers service life of about 30000h at 100RPM at 30°C. It is an IP54 rated product. The enclosure is made of black anodized aluminium. It weighs 8kg. This product is compatible with servo motors and Lexium servo drives. It can be mounted in any position. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Service Life In Hours:
- 30000 h 100 rpm 30 °C
- Maximum Torsional Backlash:
- 9 arc.min
- Product Compatibility:
- BMI 100 mm, 2 || BMH 140 mm, 1 || BSH 100 mm, 4 || BSH 140 mm, 1 || BRS3 || SH3 || MH3 || ILM
- Maximum Axial Force Fa:
- 2100 N 100 rpm, during 30000 hour at 30°C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Maximum Radial Force Fr:
- 1500 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
- Environmental Disclosure:
- ENVPEP111245EN
- Warranty:
- 18 months
- Continuous Output Torque:
- 210 N.m 100 rpm 30 °C
- Circularity Profile:
- N/A
- Net Weight:
- 8 kg
- Ambient Air Temperature For Operation:
- -25-90 °C
- Device Short Name:
- GBX
- Ip Degree Of Protection:
- shaft output IP54
- Shaft Material:
- C 45
- Shaft Moment Of Inertia:
- 2.62 kg.cm²
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- planetary gearbox
- Mounting Position:
- any position
- Mercury Free:
- Yes
- Gear Box Type:
- straight teeth
- Efficiency:
- 0.94
- Housing Colour:
- black
- Range Compatibility:
- Lexium 32i || Lexium 62 ILM || Lexium 62 || Lexium SD3 || Lexium 32 || Lexium 52
- Reduction Ratio:
- 0.375694444444444
- Gearbox External Diameter:
- 120 mm
- Rohs Exemption Information:
- Yes
- Pvc Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Maximum Output Torque:
- 336 N.m 100 rpm 30 °C
- Housing Material:
- black anodized aluminium
- Additional Information:
- lubricated for life
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Internal Diameter:
- 24.0 mm
- Torsional Rigidity:
- 13 N.m/arcmin
- Noise Level:
- 65 dB 1 m, no-load
