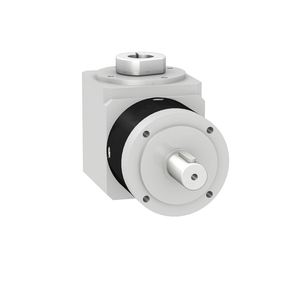

Schneider Electric GBY120008K Gearbox Wple120 I=8

(No reviews yet) Write a Review

Write a Review

Schneider Electric GBY120008K Gearbox Wple120 I=8

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GBY120008K

UPC:

3606480388811

MPN:

Condition:

New

Pvc Free:

Yes

Warranty:

18 months

Rohs Exemption Information:

Yes

Shaft Moment Of Inertia:

2.89 kg.cm²

Efficiency:

0.94

Shaft Material:

C 45

Environmental Disclosure:

ENVPEP111245EN

Circularity Profile:

N/A

Internal Diameter:

24.0 mm

Noise Level:

75 dB 1 m, no-load

Net Weight:

12 kg

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

shaft output IP54

Reduction Ratio:

0.334027777777778

Sustainable Offer Status:

Green Premium product

Device Short Name:

GBY

Torsional Rigidity:

12 N.m/arcmin

Product Or Component Type:

angular planetary gearbox

Gearbox External Diameter:

120 mm

Continuous Output Torque:

120 N.m 100 rpm 30 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Housing Material:

black anodized aluminium

Maximum Torsional Backlash:

11 arc.min

Maximum Radial Force Fr:

1500 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C

Gear Box Type:

straight teeth

Maximum Axial Force Fa:

2100 N 100 rpm, during 30000 hour at 30°C

Range Compatibility:

Lexium 62 ILM || Lexium 62 || Lexium 52 || Lexium 32 || Lexium 32i

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Additional Information:

lubricated for life

Product Compatibility:

BMI 100 mm, 2 || BMH 100 mm, 2 || BMH 100 mm, 3 || BSH 100 mm, 2 || SH3 || MH3 || ILM

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Housing Colour:

black

Service Life In Hours:

30000 h 100 rpm 30 °C

Mounting Position:

any position

Maximum Output Torque:

192 N.m 100 rpm 30 °C

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-25-90 °C

Catalog:

View

Datasheet:

View
