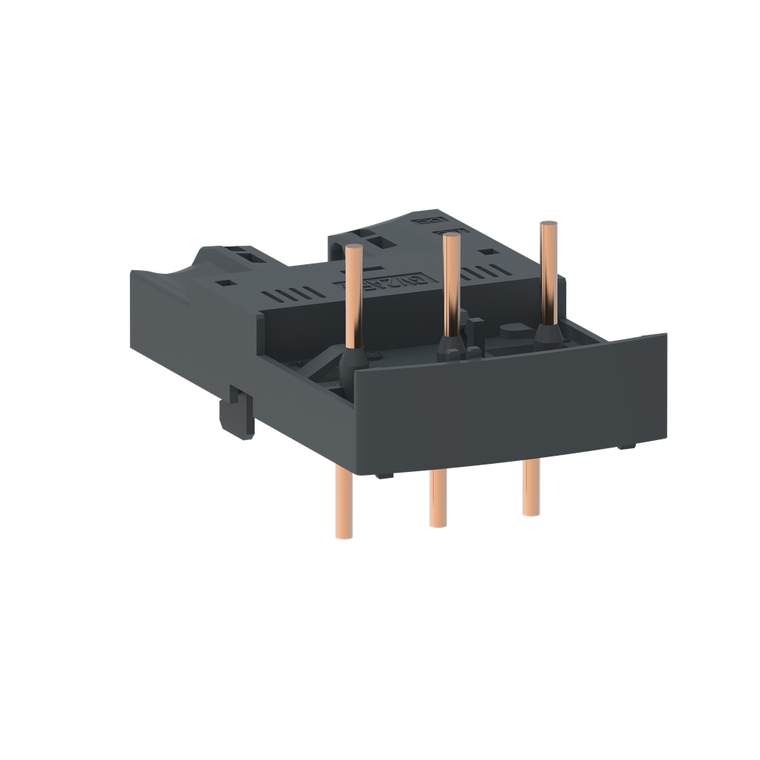

Schneider Electric GV2AF4 Terminal Block
Schneider Electric
$3.20
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
TeSys GV accessory, combination block for motor starter assembly. For the connection between a motor circuit breaker GV2 or a fuse carrier LS1D32 and a contactor LC1D09-D38. To be used when the assembly uses a mounting bracket LAD311. Sold in lots of 10 units. Green Premium compliant (RoHS/REACh).
- Quantity Per Set:
- set of 10
- Product Compatibility:
- LC1D09...D38 || adaptor plate
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Compliant
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Poles Description:
- 3P
- China Rohs Regulation:
- X
- Net Weight:
- 0.016 kg
- Product Name:
- FT
- Range Compatibility:
- TeSys GV2 || TeSys TeSys Deca
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- combination block
- Device Short Name:
- GV2AF
- Accessory / Separate Part Category:
- connection accessory
- Toxic Heavy Metal Free:
- Yes
- Range:
- Linergy
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
