Schneider Electric GV2APN01 Tesys Kit Ip54 Blackhandle-Shaft Front

Schneider Electric GV2APN01 Tesys Kit Ip54 Blackhandle-Shaft Front

Schneider Electric
SKU:
GV2APN01
|
UPC:
3606480160936
Availability:
Contact us to confirm availability and lead times.
$131.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

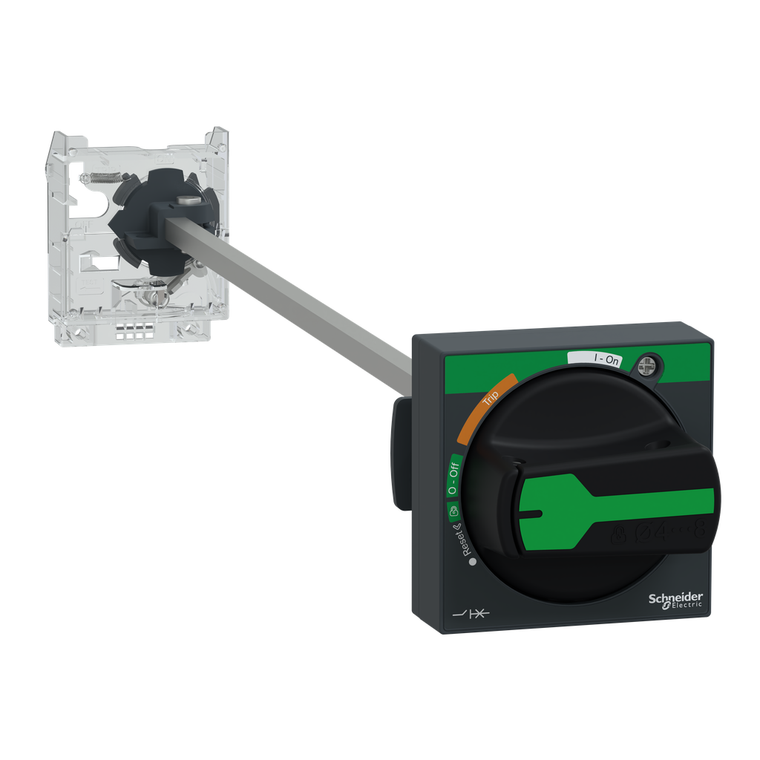

TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).
Additional Information
Device Short Name:
GV2AP
Back/Door Distance:
140-250 mm
Ip Degree Of Protection:
IP54
Locking Options Description:
1 to 3 padlocks
Handle Colour:
black
Net Weight:
0.2 kg
Accessory / Separate Part Category:
control accessory
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Range:
TeSys || TeSys Deca
Product Or Component Type:
rotary handle kit
Handle Front Plate Colour:
grey
Product Compatibility:
GV2P || GV2L
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information:
Yes
Rotary Handle Padlocking:
padlock in OFF position || padlock in ON position
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Warranty:
18 months
Rotary Handle Mounting Style:
extended
Datasheet:
View
