Schneider Electric GV2G245 2 Tap Offs Busbar Gv2 63A 45Mm Pitch
Schneider Electric
$23.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

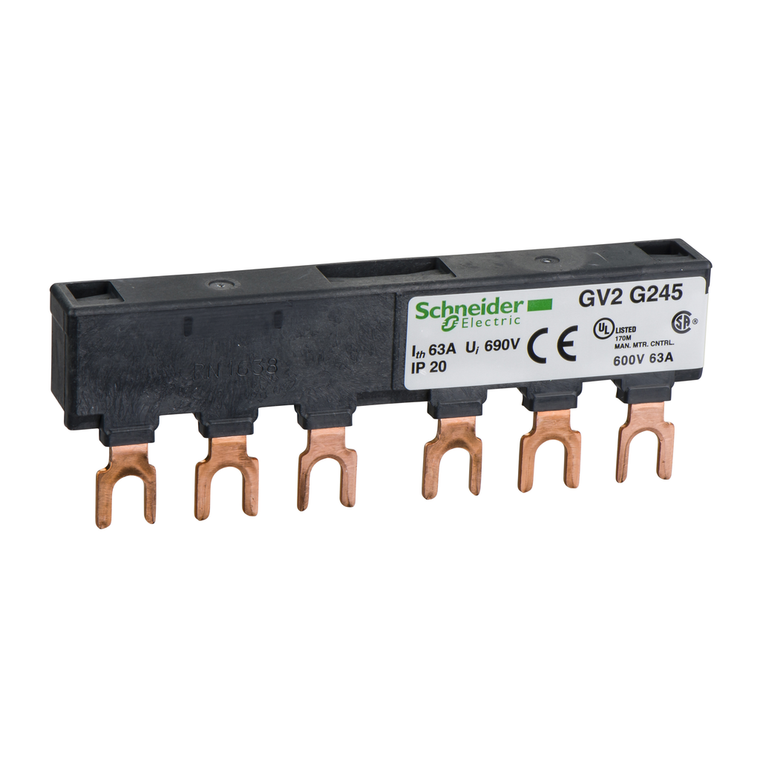

Schneider Electric GV2G245 2 Tap Offs Busbar Gv2 63A 45Mm Pitch
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 45mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).
- Number Of Tap-Offs:
- 2
- [Ith] Conventional Free Air Thermal Current:
- 63 A
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- TeSys GV2 || TeSys Deca || TeSys U
- Connection Pitch:
- 45 mm
- Warranty:
- 18 months
- Product Or Component Type:
- comb busbar
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Mounting Location:
- on terminal
- Net Weight:
- 0.036 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range:
- Linergy
- Accessory / Separate Part Category:
- connection accessory
- Product Name:
- FT
- Device Short Name:
- GV2G
- Eu Rohs Directive:
- Compliant
- Mercury Free:
- Yes
- Length:
- 89 mm
- Toxic Heavy Metal Free:
- Yes
- Poles Description:
- 3P
- [Ui] Rated Insulation Voltage:
- 690 V
