Schneider Electric GV2G254 2 Tap Offs Busbar Gv2 63A 54Mm Pitch
Schneider Electric
$23.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

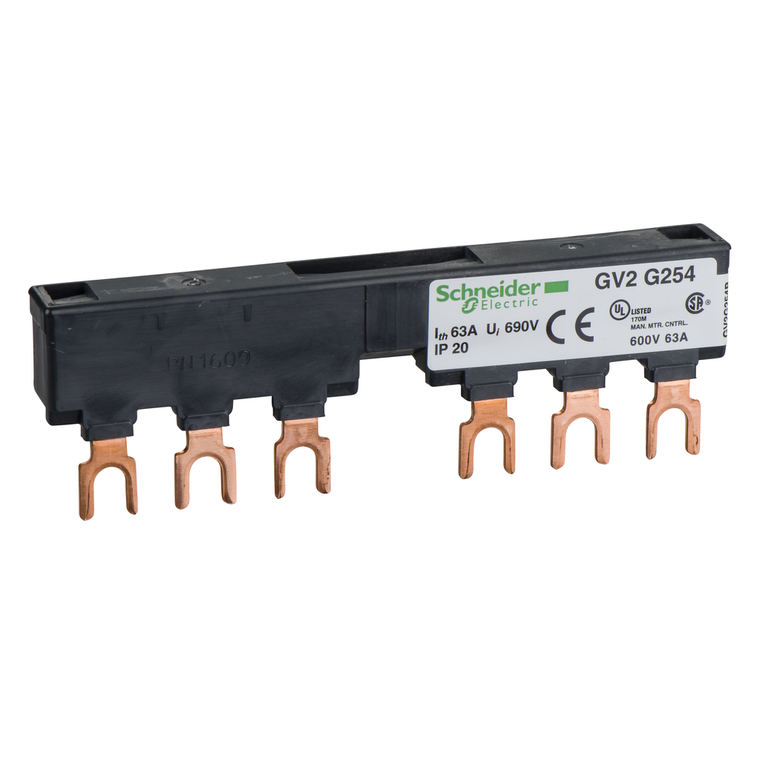

Schneider Electric GV2G254 2 Tap Offs Busbar Gv2 63A 54Mm Pitch
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).
- Range Compatibility:
- TeSys GV2 || TeSys K || TeSys U || TeSys Deca
- Accessory / Separate Part Category:
- connection accessory
- Net Weight:
- 0.038 kg
- Length:
- 98 mm
- Eu Rohs Directive:
- Compliant
- Number Of Tap-Offs:
- 2
- Poles Description:
- 3P
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Or Component Type:
- comb busbar
- Warranty:
- 18 months
- Device Short Name:
- GV2G
- Range:
- Linergy
- Mercury Free:
- Yes
- [Ith] Conventional Free Air Thermal Current:
- 63 A
- [Ui] Rated Insulation Voltage:
- 690 V
- Reach Free Of Svhc:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Connection Pitch:
- 54 mm
- Product Name:
- FT
- China Rohs Regulation:
- X
- Mounting Location:
- on terminal
