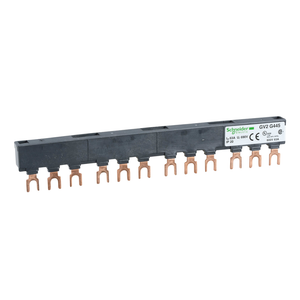

Schneider Electric GV2G345 3 Tap Offs Busbar Gv2 63A 45Mm Pitch

Schneider Electric GV2G345 3 Tap Offs Busbar Gv2 63A 45Mm Pitch

Schneider Electric
SKU:
GV2G345
|
UPC:
3389110556438
Availability:
Contact us to confirm availability and lead times.
$28.70
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 3 tap-off outlets for the paralleling of 3 devices with a pitch of 45mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).
Additional Information
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Warranty:
18 months
Rohs Exemption Information:
Yes
Length:
134 mm
Connection Pitch:
45 mm
China Rohs Regulation:
X
Toxic Heavy Metal Free:
Yes
Product Name:
FT
Range:
Linergy
Number Of Tap-Offs:
3
Reach Free Of Svhc:
Yes
Poles Description:
3P
Eu Rohs Directive:
Compliant
Net Weight:
0.058 kg
Mounting Location:
on terminal
Mercury Free:
Yes
Accessory / Separate Part Category:
connection accessory
[Ith] Conventional Free Air Thermal Current:
63 A
Device Short Name:
GV2G
Product Or Component Type:
comb busbar
Range Compatibility:
TeSys GV2 || TeSys K || TeSys U
[Ui] Rated Insulation Voltage:
690 V
